  • Sku: JH404512

Axon Cladding 133 Grained 9mm 3000mm x 1200mm

$175.00
 per
Delivery cost calculated at checkout.

Product Description

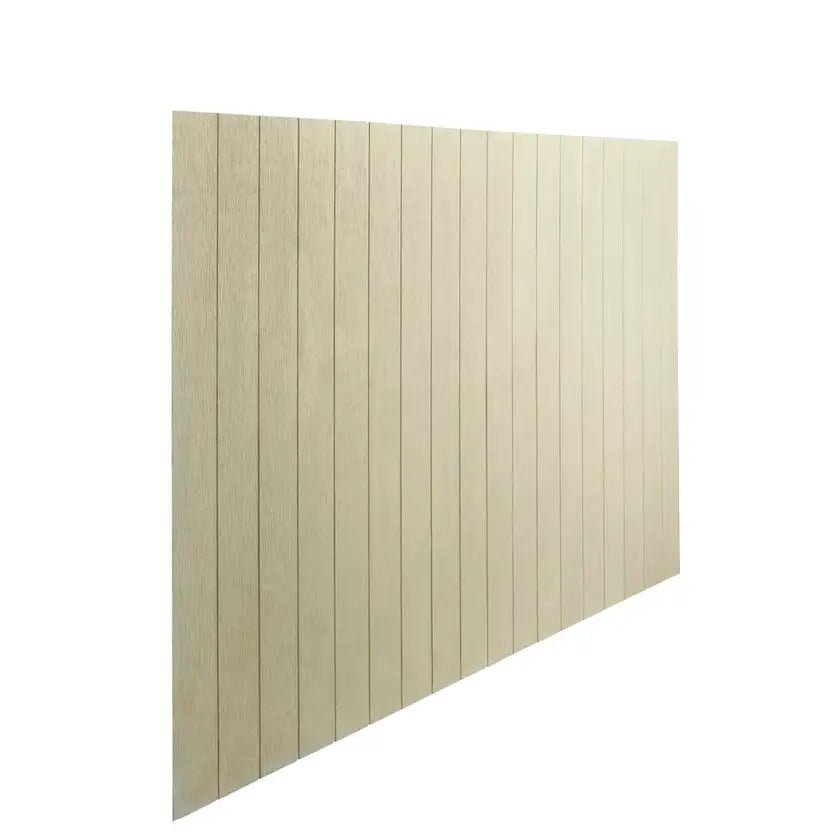

Introduce drama and detail to your walls with the clean vertical lines of Axon™ Cladding. Incorporating the beauty and fine detail of painted vertical joint timber, but without time-consuming board construction or durability hassles, Axon is a range of vertically grooved panels with the detail of vertical joint timber. Featuring a stepped shiplap joint on the long edges for easy installation, it can be gun nailed and cut cleanly with a circular saw using a dust-reducing fibre cement blade. The ideal option for contemporary upper storey and ground floor extensions and suited to modern and beachy building styles, vertical lines make an impact with line and form and bring variety and textural interest to external walls.

Scyon Formulation

Innovative Scyon™ fibre cement is thicker, yet as durable and easy to nail, for aesthetic cladding and tongue and groove flooring.

Speed of Installation

Gun-nail to timber frames or screw to light gauge steel frames. Pre-primed and ready for paint.

Fire Resistant

Adheres to bushfire attack level requirements to BAL40. Fire rating up to 60 minutes when used with Hardie™ Smart Fire & Acoustic Wall Systems.

Timber Look

Fibre cement with the charm of timber without the longevity issues of shrinking, swelling and warping to retain its looks for longer.

Product Specifications

Product Code
404512
Description Axon Cladding 133mm Grained
Length (mm) 3000
Width (mm) 1200
Thickness (mm) 9
Surface Texture Grained
Groove Spacing (mm) 133
Effective Cover Per Unit (m2) 3.6
Effective Width (mm) 1200
Coverage Per Pack (m2) 108
Mass (kg/m2)* 12.5
Weight Per Unit** 45
Pack Weight (kg)*** 1350

* M2 weight includes on the wall product only weight taking into account effective coverage. This excludes fasteners, sealants and other accessories.

** Piece weight covers the physical product weight per plank/sheet.

*** Pack weight includes all product and packaging in a full pallet.

Delivery Information

Where does Wall Ceiling deliver to?

Wall Ceiling is delighted to offer plasterboard delivery to metro Sydney.

For regional areas, please email us at info@wallceiling.com.au with the items and quantities you need from our website, and we will promptly provide a manual quote.

How much do you charge for delivery?

Customer will receive an accurate delivery charge during checkout.

How long does it take to deliver the order and how much it will cost?

Delivery time frame varies by location:

 Location Delivery Time Frame Delivery Cost
Sydney 1 - 2 business days Starts from $45

Some products may have a longer lead time which we will inform you as early as possible.

Who is responsible for unloading the materials off the truck?

Our delivery driver will assist you to unloading the materials next to the truck. However, it is the customer's responsibility to move the materials beyond that point.

Do you offer crane truck delivery?

No, we found hand unload or forklift on site is the most effectively way to unload plasterboard products.

What time will truck arrive during the delivery day?

It's difficult to predict precise delivery time due to factors such as traffic and weather conditions.

To facilitate a smooth delivery process:

  • Our office will schedule and confirm delivery date with you after receiving your order.
  • On the day of delivery, our driver will contact you before dispatching from warehouse to ensure you are prepared.

Do I need to be on-site to receive my delivery?

Yes, if you are not available, please kindly arrange another person to accept and help with unloading on your behalf.

View full details

James Hardie Axon Cladding

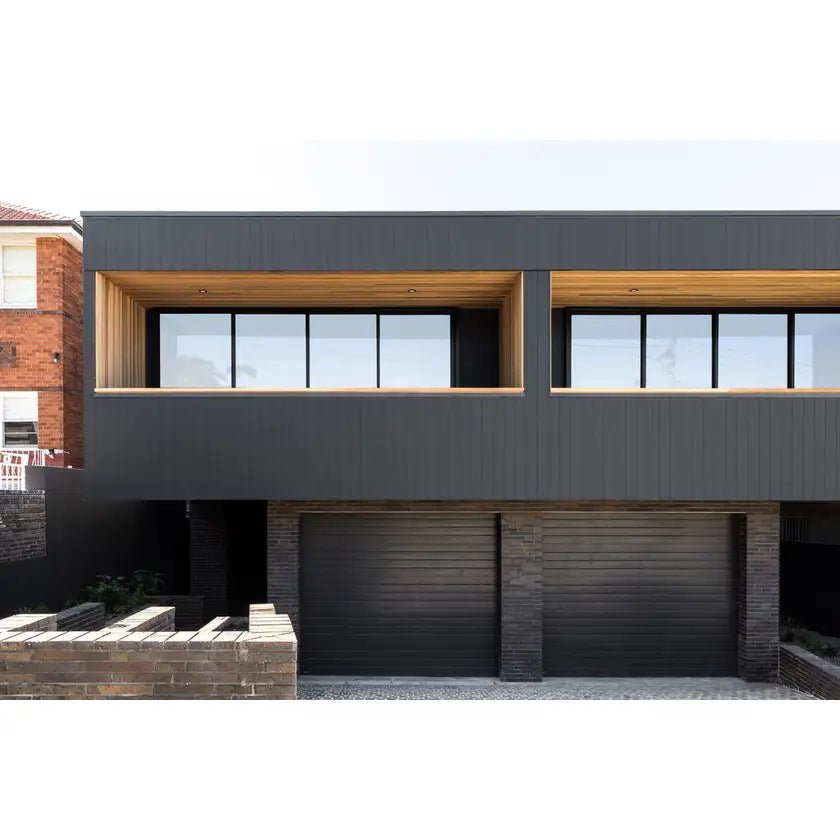

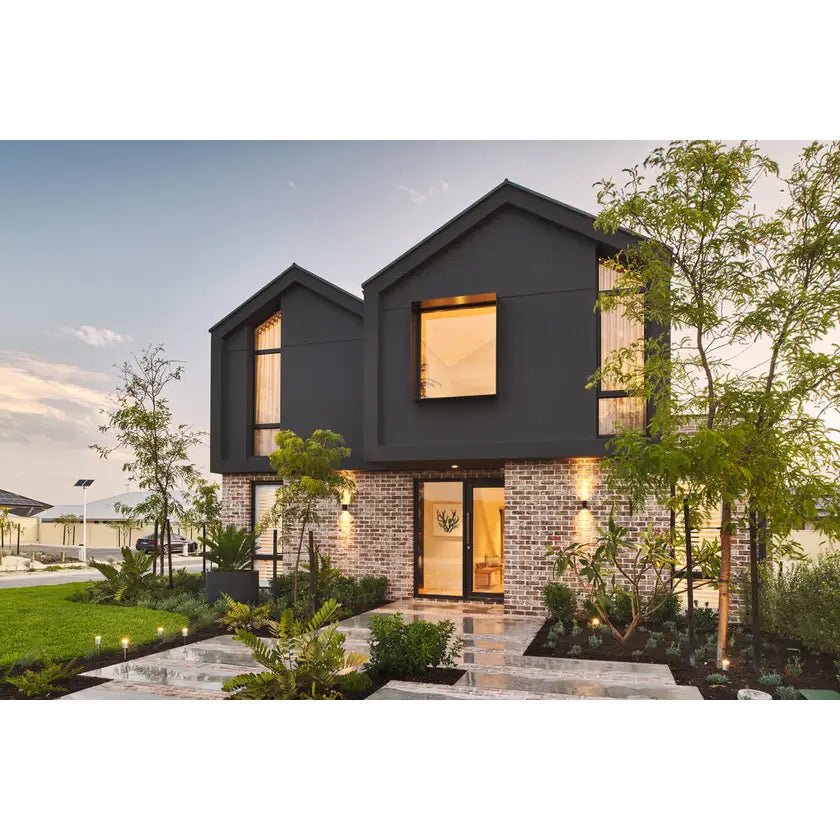

James Hardie's Axon cladding is a highly regarded product in Australia, known for its versatility, durability, and aesthetic appeal. It's a vertical wall cladding that offers a contemporary look, making it popular for modern architectural designs.

Axon Cladding is an attractive fibre cement cladding panel with vertical grooves which are reminiscent of vertical joint timber wall lining. Designed as a cladding product, it's commonly used as a delightful detail on minimalist modern home exteriors.

Vertical joint wall linings are sought after in interior design and styling because give walls a sense of craftsmanship and attention to detail when compared with conventional plasterboard.

Axon Cladding has become a modern alternative to Hardie Groove interior linings. So how are they different? Hardie™ Groove has a V-shaped groove every 100mm. Axon Cladding has a wider U-shaped groove and a wider groove spacing of 133mm.

Axon Cladding 133mm Smooth is a 1200mm wide panel which is available in 2450, 2750, 3,000 and 3,600mm heights making it suitable for tall walls and vaulted ceilings. Hardie Groove on the other hand, is also a 1200mm wide panel, but it's only available in a 2,700mm height. If you have a wall or a ceiling that's taller than 2,700mm, it's best to avoid having to join the short side of the panels. Instead, choose the longer Axon panel to eliminate the joint.

Axon Cladding also comes with 400mm groove spacing and a 133mm version with a wood grain texture which are not shown in the images.

For interior use, Axon Cladding suits hallways, feature walls, ceilings and bathrooms walls (excluding shower recesses).used to create a standout feature on buildings. It can be painted in various colors, offering flexibility to match different design palettes.

    In summary, James Hardie’s Axon cladding is a top choice in Australia for those seeking a durable, easy-to-install, and aesthetically versatile cladding solution. Its suitability for a range of architectural styles and environmental conditions makes it a preferred option in the Australian building market. Please contact our friendly support team for more details.
