  • Sku: JH404417

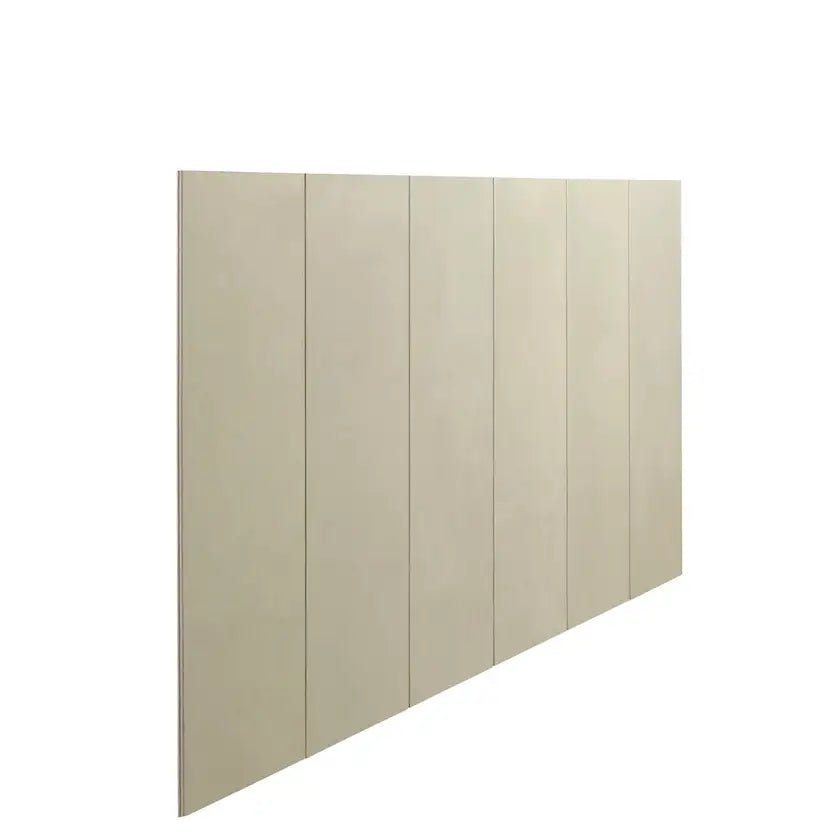

Axon Cladding 400 Smooth 9mm 2450mm x 1200mm

$142.60
 per
Delivery cost calculated at checkout.

Product Description

Introduce drama and detail to your walls with the clean vertical lines of Axon™ Cladding. Incorporating the beauty and fine detail of painted vertical joint timber, but without time-consuming board construction or durability hassles, Axon is a range of vertically grooved panels with the detail of vertical joint timber. Featuring a stepped shiplap joint on the long edges for easy installation, it can be gun nailed and cut cleanly with a circular saw using a dust-reducing fibre cement blade. The ideal option for contemporary upper storey and ground floor extensions and suited to modern and beachy building styles, vertical lines make an impact with line and form and bring variety and textural interest to external walls.

Scyon Formulation

Innovative Scyon™ fibre cement is thicker, yet as durable and easy to nail, for aesthetic cladding and tongue and groove flooring.

Speed of Installation

Gun-nail to timber frames or screw to light gauge steel frames. Pre-primed and ready for paint.

Fire Resistant

Adheres to bushfire attack level requirements to BAL40. Fire rating up to 60 minutes when used with Hardie™ Smart Fire & Acoustic Wall Systems.

Timber Look

Fibre cement with the charm of timber without the longevity issues of shrinking, swelling and warping to retain its looks for longer.

Product Specifications

Product Code
404417
Description Axon Cladding 400mm Smooth
Length (mm) 2450
Width (mm) 1200
Thickness (mm) 9
Surface Texture Smooth
Groove Spacing (mm) 400
Effective Cover Per Unit (m2) 2.94
Effective Width (mm) 1200
Coverage Per Pack (m2) 88.2
Mass (kg/m2)* 12.5
Weight Per Unit** 36.75
Pack Weight (kg)*** 1102.5

* M2 weight includes on the wall product only weight taking into account effective coverage. This excludes fasteners, sealants and other accessories.

** Piece weight covers the physical product weight per plank/sheet.

*** Pack weight includes all product and packaging in a full pallet.

Delivery Options

Next Day Delivery (7am - 4pm, Monday to Friday). From $15, available to all Metro Sydney.
  • Cut-Off Time for next day delivery is 12pm. Order placed after 12pm will be delivered either next day or the day after.
  • Our office will call you before heading to your site. Please ensure adequate labour on site to help with unloading.
Express Delivery (deliver within 2-3 Hours, Monday to Friday). From $39, available to limit area only.
  • We understand sometimes customers needs urgent deliveries. Express Delivery service will deliver order to your site within 2-3 hours once order is confirmed. Cut-Off Time for Express Delivery is 12pm. All order placed after 12pm will be delivered the next business day with priority.
Please note:

* Only select items are available for pickup.

* * Please give us a call before visiting. Our friendly staff may be out for delivery, and the warehouse might be unattended during your visit.

Delivery Information

Where does Wall Ceiling deliver to?

Wall Ceiling is pleased to offer delivery services to a wide range of suburbs throughout Metro Sydney, NSW.

      How much do you charge for delivery?

      Customer will receive an accurate delivery charge during checkout.

            What are the delivery options?

              • Next Day Delivery:

              For order with total weight less than 1.5 tonne. Cut-Off Time for Next Day Delivery is 12pm, order placed after 12pm will be delivered either next day or the day after.

              • Express Delivery

              Only available in certain areas, orders will be delivered within 2-3 hours time frame once order is confirmed. Cut-Off Time for Express service is 12pm.

                Who is responsible for unloading the materials off the truck?

                Our delivery driver will assist with unloading materials adjacent to the truck. However, it is the customer's responsibility to move the materials beyond that point.

                  What time will truck arrive during the delivery day?

                  It's difficult to predict precise delivery time due to factors such as traffic and weather conditions; however we will make every effort to deliver within the expected time frame.

                  Our delivery driver will contact you in advance, ensuring you are ready for the delivery.

                    Do I need to be on-site to receive my delivery?

                    Yes, if you are not available, please kindly arrange another person to accept and unload the materials on your behalf.

                    What's your return and refund policy?

                    Returns must be made within 14 days of purchase and a restocking fee of 30% of the value of the goods returned will be applied. Some custom made products cannot be returned.

                    Following items are excluded from above policy and thus return or refund is not accepted:

                    • All sheet products including Plasterboard, Villaboard and other fibre cement  products.
                    • All ceiling tiles products.

                    For further information, please read our Return and refund policy.

                            View full details

                            James Hardie Axon Cladding

                            James Hardie's Axon cladding is a highly regarded product in Australia, known for its versatility, durability, and aesthetic appeal. It's a vertical wall cladding that offers a contemporary look, making it popular for modern architectural designs.

                            Axon Cladding is an attractive fibre cement cladding panel with vertical grooves which are reminiscent of vertical joint timber wall lining. Designed as a cladding product, it's commonly used as a delightful detail on minimalist modern home exteriors.

                            Vertical joint wall linings are sought after in interior design and styling because give walls a sense of craftsmanship and attention to detail when compared with conventional plasterboard.

                            Axon Cladding has become a modern alternative to Hardie Groove interior linings. So how are they different? Hardie™ Groove has a V-shaped groove every 100mm. Axon Cladding has a wider U-shaped groove and a wider groove spacing of 133mm.

                            Axon Cladding 133mm Smooth is a 1200mm wide panel which is available in 2450, 2750, 3,000 and 3,600mm heights making it suitable for tall walls and vaulted ceilings. Hardie Groove on the other hand, is also a 1200mm wide panel, but it's only available in a 2,700mm height. If you have a wall or a ceiling that's taller than 2,700mm, it's best to avoid having to join the short side of the panels. Instead, choose the longer Axon panel to eliminate the joint.

                            Axon Cladding also comes with 400mm groove spacing and a 133mm version with a wood grain texture which are not shown in the images.

                            For interior use, Axon Cladding suits hallways, feature walls, ceilings and bathrooms walls (excluding shower recesses).used to create a standout feature on buildings. It can be painted in various colors, offering flexibility to match different design palettes.

                              In summary, James Hardie’s Scyon Axon cladding is a top choice in Australia for those seeking a durable, easy-to-install, and aesthetically versatile cladding solution. Its suitability for a range of architectural styles and environmental conditions makes it a preferred option in the Australian building market. Please contact our friendly support team for more details.
