Description
Gyprock Supaceil was the first product in Australia manufactured with Optimised Core technology which provides an advanced performance-to-weight ratio, meaning greater breaking strength in a substantially lighter board that continues to exceed the performance requirements of Australian Standard AS/NZS 2588. This improved strength ensures it will stay flatter, even when installed on ceiling joists with 600mm centres. There is also less chance of fixings pulling through the board when extra pressure from above is applied such as heavy ceiling insulation.

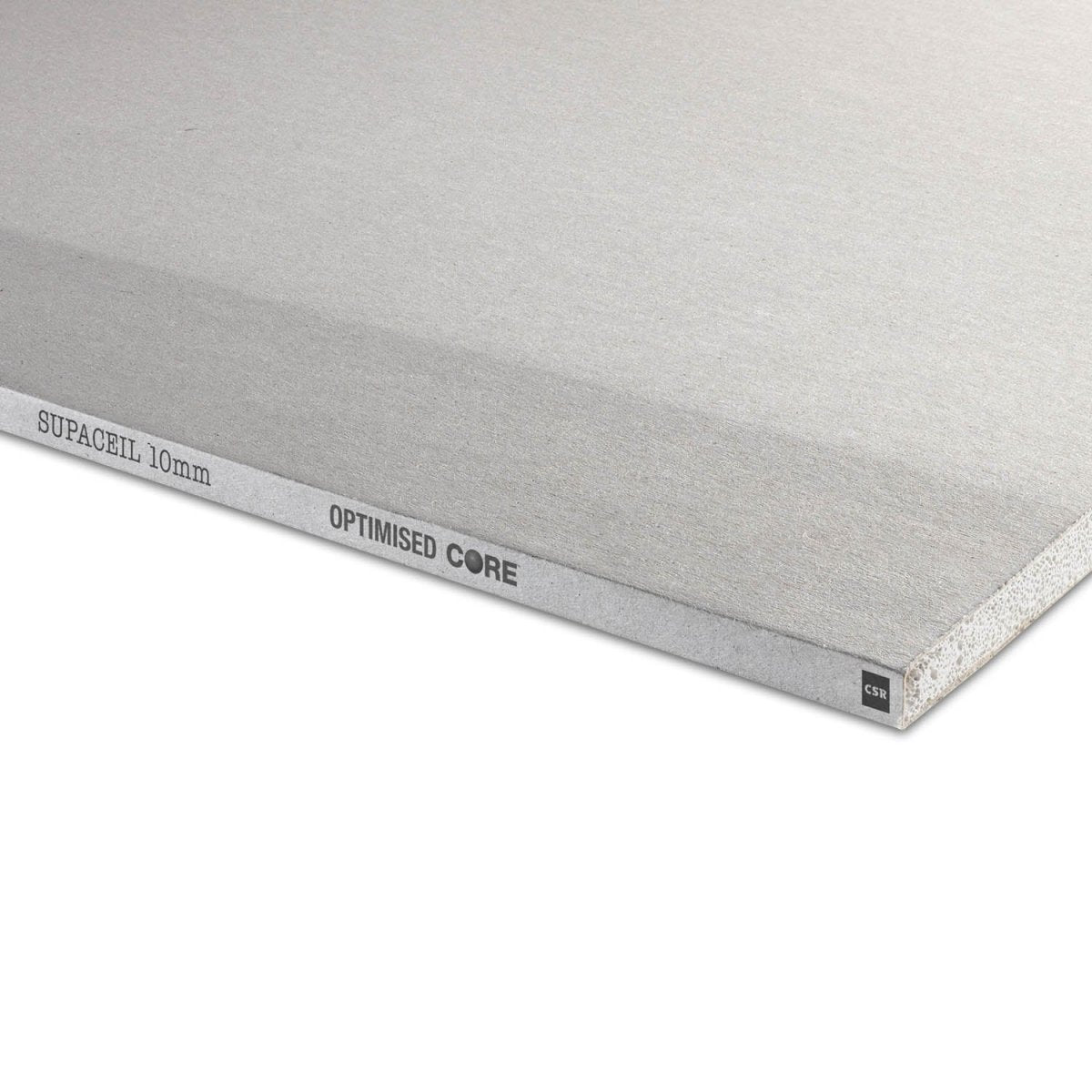

The board’s thicker face paper produces a crisper score and snap experience with cleaner cuts and squarer edges.
Typical Applications
Gyprock Supaceil is typically used as a superior ceiling lining option in residential applications and can be used to span up to 600mm joist centres. It is most suitable for areas of the home where exposure to moisture is not a concern such as bedrooms, living areas and entranceways.
Product Options
Gyprock Supaceil is available in the following sizes:
| Thickness |
10mm |
| Widths |
900mm (WA Only)
1200mm
1350mm |
| Lengths |
2400mm
2700mm
3000mm
3600mm
4200mm
4800mm
5400mm
6000mm |
| Edge Profiles |
Recessed Edge for regular jointing |
Manufacturing Tolerances
| Nominal Thickness |
10mm ± 0.4mm |
| Nominal Widths |
900mm, 1200mm and 1350mm ± 3mm |
| Nominal Lengths |
From 2400mm to 6000mm ± 5mm, typically in 300mm increments |
| Squareness |
Cut ends ± 3mm in the width of the board |
Physical Properties
| Nominal Board Weight*
|
6.1kg/m2, 6.2kg/m2 (WA) |
| Thermal Resistance |
0.04 – 0.05 m2K/W |
| Fire Hazard Properties∆ |
Group No = 1
SMOGRARC <100 m2/s2
|
| Combustibility◊ |
Plasterboard may be used wherever a non-combustible material is required. |
| Total Recycled Content |
6.2% |
* Subject to reasonable manufacturing variance
∆ In accordance with AS ISO 9705 and AS 5637.1
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).
