Description
Complete by name and Complete by nature: for commercial environments, this ultimate plasterboard is specifically engineered to meet the highest standards across a broad range of performance requirements.
Product Overview
EC08 Complete is manufactured with a dense, fibre-reinforced core and is specially formulated to provide superior performance for mould, impact, fire, acoustic and moisture resistance making it an excellent choice for most commercial applications.
All boards in the EC08 range contain high levels of recycled content and are manufactured to AS/NZS 2588 – Gypsum Plasterboard. Their low VOC emissions make them an ideal choice for applications where maintaining high levels of indoor air quality is important.

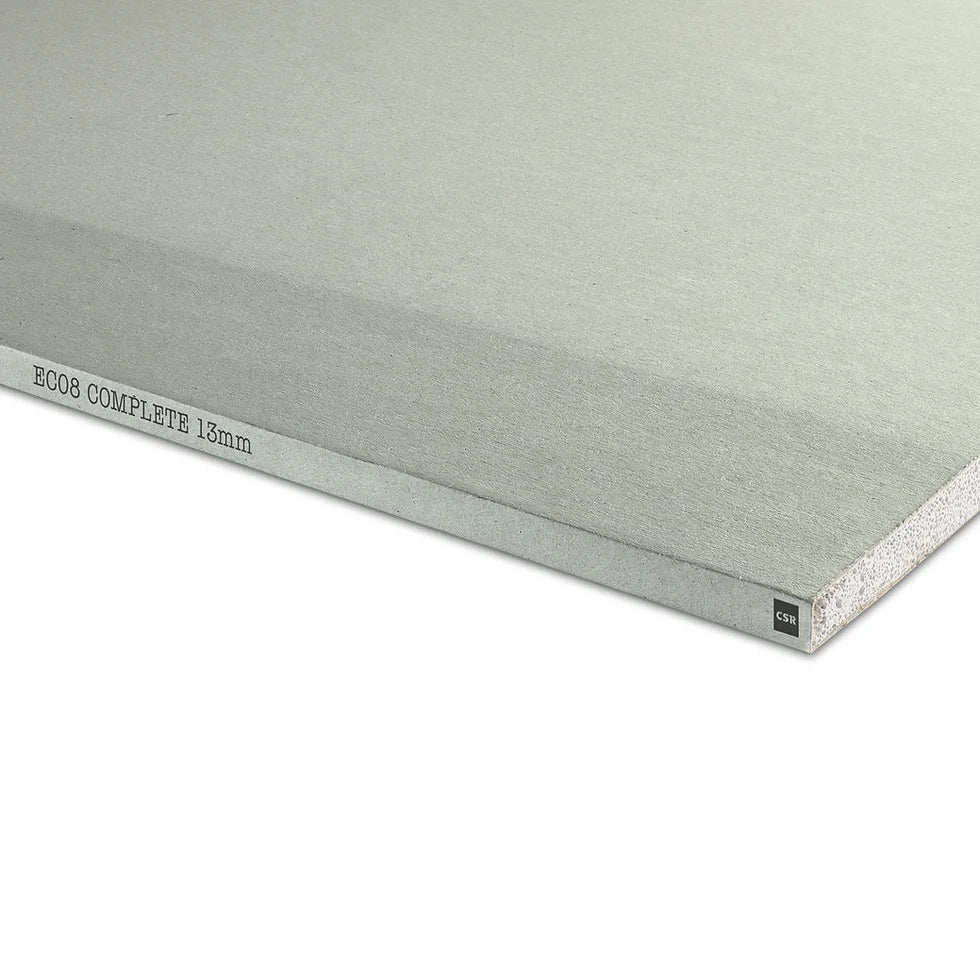

EC08 Complete is easily identified by its green coloured face paper.
Typical Applications:
EC08 Complete is typically used as a wall and ceiling lining in commercial green building projects where a high level of impact, fire, moisture and mould resistance is required and high levels of recycled content are desired. This includes all green building projects and applications where maintaining high levels of indoor air quality is important such as schools, health and aged care.
Product Options
Gyprock EC08 Complete is available in the following sizes.
| Thickness |
13mm
16mm
|
| Widths |
1200mm
|
| Lengths |
3000mm
3600mm
|
| Edge Profiles |
Recessed Edge for regular jointing |
Manufacturing Tolerances
| Nominal Thickness |
13mm and 16mm ± 0.5mm |
| Nominal Widths |
1200mm ± 3mm |
| Nominal Lengths |
3000mm and 3600mm ± 5mm |
| Squareness |
Cut ends ± 3mm in the width of the board |
Physical Properties
|
13mm |
16mm |
| Nominal Board Weight*
|
12.4kg/m2
|
14.8kg/m2
|
| Thermal Resistance |
0.05 - 0.07 m2K/W |
0.07 – 0.09 m2K/W |
| VOC level (as per GBCA limits) |
0.043 mg/m2 /hr |
| Fire Hazard Properties∆ |
Group No = 1
SMOGRARC <100 m2/s2
|
| Combustibility◊ |
Plasterboard may be used wherever a non-combustible material is required. |
Total Recycled Content
|
21.3% |
21.2% |
* Subject to reasonable manufacturing variance
∆ In accordance with AS ISO 9705 and AS 5637.1
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).
