Description
Gyprock Shaft Liner MP provides enhanced protection against mould growth for extra peace of mind during the early stages of construction.
Product Overview
Shaft Liner MP, like standard Shaft Liner panel has a glass fibre-reinforced core encased in a heavy duty linerboard. This enables it to resist fire and make it ideal for use as part of a fire rated wall or ceiling system. These panels also offer exceptional acoustic insulation properties and are used in Gyprock commercial wall and ceiling systems where a high fire rating or high acoustic performance is specified.
New Shaft Liner MP panel is manufactured with a powerful but gentle antifungal agent that permeates the plasterboard core, as well as the face and back paper of the board, providing enhanced protection against the possibility of mould growth during the early stages of construction.

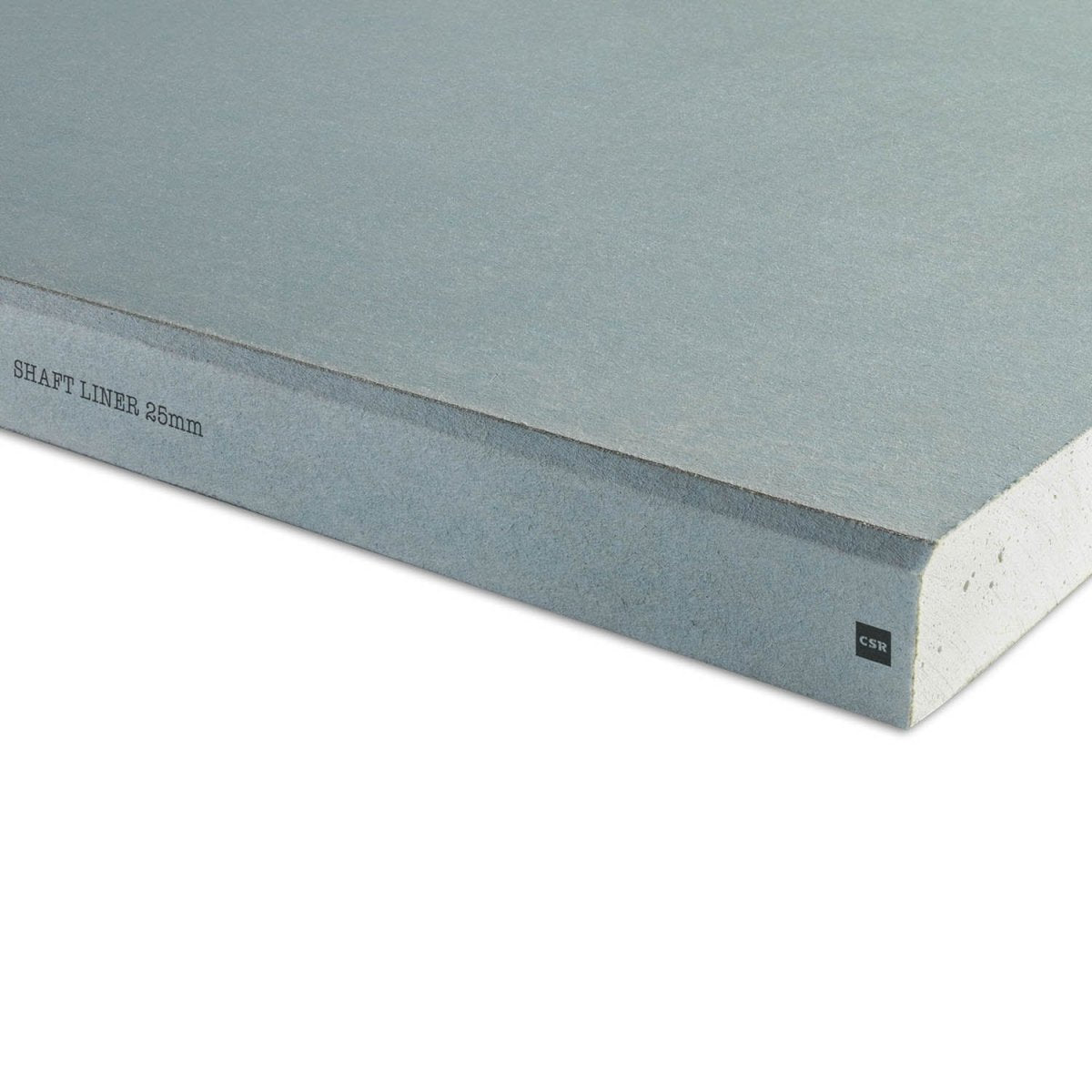

Gyprock Shaft Liner MP Panel can be identified by its blue coloured face paper.
Typical Applications

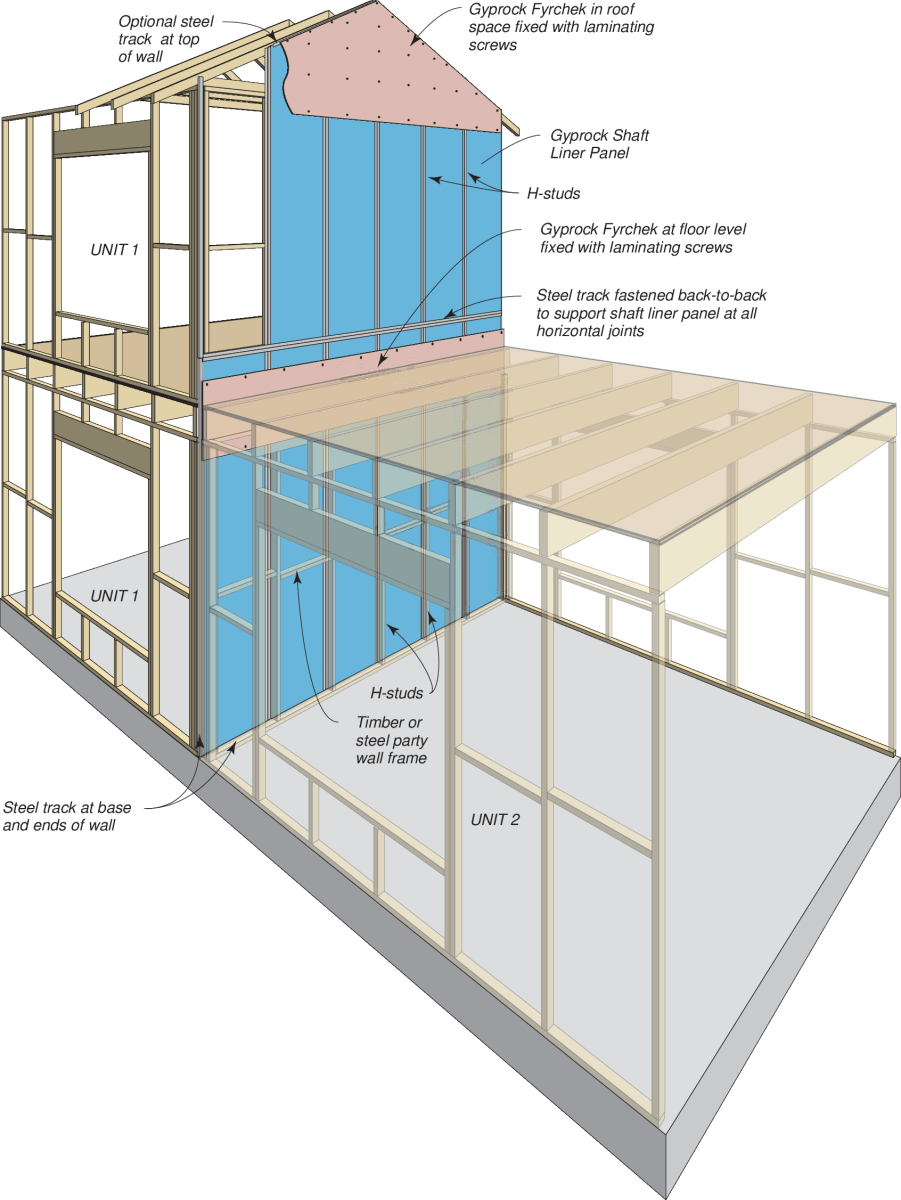

Shaft Liner MP is predominantly specified for the internal barrier lining within Gyprock fire and/or acoustic wall and ceiling systems such as Party Wall Systems.
Typical applications include:
• Intertenancy walls and party walls
• Multi-residential unit ceilings
• Stairwells
• Lift wells
• Service shafts
Product Options
Gyprock Shaft Liner MP is available in the following sizes:
| Thickness |
25mm |
| Widths |
600mm |
| Lengths |
3000mm
3600mm
|
| Edge Profiles |
Square Edge for applications not requiring jointing |
Manufacturing Tolerances
| Nominal Thickness |
25mm ± 0.5mm |
| Nominal Widths |
600mm ± 3mm |
| Nominal Lengths |
From 3000mm and 3600 ± 5mm |
| Squareness |
Cut ends ± 3mm in the width of the board |
Physical Properties
| Nominal Board Weight*
|
19.8kg/m2
|
| Thermal Resistance |
0.14 m2K/W |
| Fire Hazard Properties∆ |
Group No = 1
SMOGRARC <100 m2/s2
|
| Combustibility◊ |
Plasterboard may be used wherever a non-combustible material is required. |
Total Recycled Content°
|
9.3% |
* Subject to reasonable manufacturing variance
∆ In accordance with AS ISO 9705 and AS 5637.1
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).
° This plasterboard may require extra processing when recycling due to the presence of glass fibre mesh material.
