CSR Gyprock EC08 Complete 16mm Plasterboard RE

    Description

    Complete by name and Complete by nature: for commercial environments, this ultimate plasterboard is specifically engineered to meet the highest standards across a broad range of performance requirements.

    Product Overview

    EC08 Complete is manufactured with a dense, fibre-reinforced core and is specially formulated to provide superior performance for mould, impact, fire, acoustic and moisture resistance making it an excellent choice for most commercial applications.

    All boards in the EC08 range contain high levels of recycled content and are manufactured to AS/NZS 2588 – Gypsum Plasterboard. Their low VOC emissions make them an ideal choice for applications where maintaining high levels of indoor air quality is important.

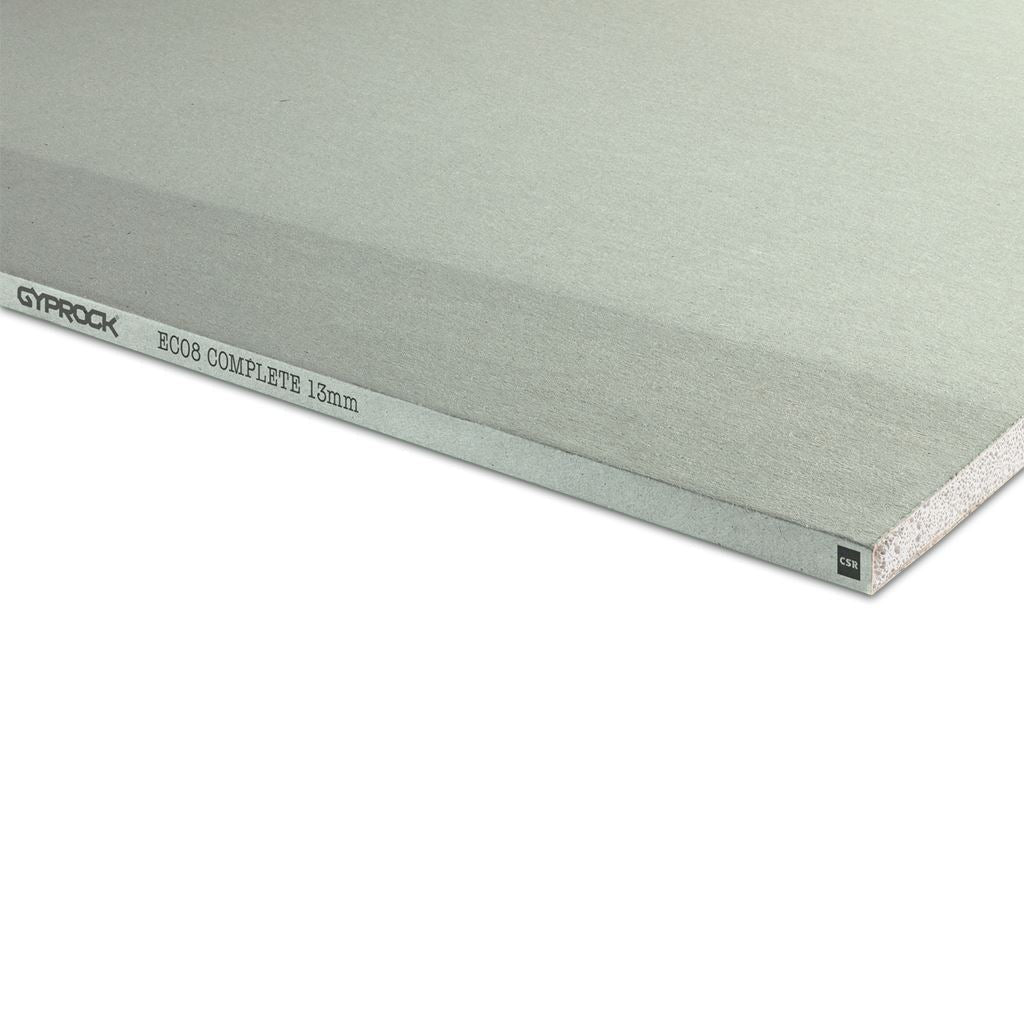

    EC08 Complete is easily identified by its green coloured face paper.

    Typical Applications:

    EC08 Complete is typically used as a wall and ceiling lining in commercial green building projects where a high level of impact, fire, moisture and mould resistance is required and high levels of recycled content are desired. This includes all green building projects and applications where maintaining high levels of indoor air quality is important such as schools, health and aged care.

    Tested Impact Performance

    Gyprock EC08 Complete 16mm Plasterboard

    Gyprock impact resistant plasterboard products are manufactured with a heavier lining paper, and special additives to enhance the durability of their core. Typically, these products can withstand twice the discernible force of regular plasterboard products, making them ideal for high traffic areas.

    Hard body impact

    Hard body impact is assessed by dropping a 50mm steel ball onto the plasterboard surface from increasing heights.

    Soft body impact

    Soft body impact testing sees a weighted bag swung on a pendulum, striking the plasterboard surface.

    Product Options

    Gyprock EC08 Complete is available in the following sizes.

    Thickness 13mm
    16mm
    Widths 1200mm
    Lengths 3000mm
    3600mm
    Edge Profiles Recessed Edge for regular jointing

    Manufacturing Tolerances

    Nominal Thickness 13mm and 16mm ± 0.5mm
    Nominal Widths 1200mm ± 3mm
    Nominal Lengths 3000mm and 3600mm ± 5mm
    Squareness Cut ends ± 3mm in the width of the board

    Physical Properties

    13mm 16mm
    Nominal Board Weight* 12.4kg/m2 14.8kg/m2
    Thermal Resistance 0.05 - 0.07 m2K/W 0.07 – 0.09 m2K/W
    VOC level (as per GBCA limits) 0.043 mg/m2 /hr
    Fire Hazard Properties∆ Group No = 1
    SMOGRARC <100 m2/s2
    Combustibility◊ Plasterboard may be used wherever a non-combustible material is required.
    Total Recycled Content
    21.3% 21.2%

    * Subject to reasonable manufacturing variance
    ∆ In accordance with AS ISO 9705 and AS 5637.1
    ◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).
