Foilboard 20 x 2400 x 1200mm Ultra 20 Insulation

$44.50
 per
Included GST.
Delivery cost calculated at checkout.
Size

Product Description

Foil Insulation is an efficient and effective way to improve the thermal efficiency of a home, office or any other building. In essence, reflective foil insulation panels are designed to protect a space from getting too hot in summer and too cold in winter, helping to maintain balanced temperatures all year round.

Specifications

Thickness (mm) Width (mm) Length (mm) Sheet (m²)
10 1200 2400 2.88
15 1200 2400 2.88
20 1200 2400 2.88
25 1200 2400 2.88
30 1200 2400 2.88
40 1200 2400 2.88
50 1200 2400 2.88

Delivery Information

Can I Pick-up from your warehouse?

Yes, pick-up service is available from our Kingsgrove warehouse.

What is the pick-up hours?

Please plan to collect your ordered items from our warehouse during our designated pick-up hours, from 12pm - 3pm Monday to Friday. This ensures a smooth and efficient retrieval of your products.

Pick-up on other time by appointment only.

Do you do delivery?

Yes, we offer delivery service.

Where does Wall Ceiling deliver to?

Wall Ceiling is pleased to offer delivery services to a wide range of suburbs throughout Greater Sydney, NSW.

      How much do you charge for delivery?

      • Delivery charge of $125 for deliveries within 20km radius from Kingsgrove warehouse;
      • Delivery charge of $195 for deliveries within 30km radius from Kingsgrove warehouse;
      • Delivery charge of $245 for deliveries within 40km radius from Kingsgrove warehouse;

      Our website will provide an accurate estimate of delivery charge during checkout process.

            When would you deliver the order?

              Items that are in stock are typically delivered on the following business day or prefer date selected by customer.

                Who is responsible for unloading the materials off the truck?

                Please note, it is customer's responsibility to unload the materials off the truck, either manually by hand or with assistance of a forklift on site. Please arrange adequate help to unload the materials.

                  What time will truck arrive during the delivery day?

                  We cannot specify an exact delivery time due to factors like traffic and weather conditions; however we will make every effort to deliver within the expected time frame.
                    Our delivery driver will contact you in advance, ensuring you are ready for the delivery.

                      Do I need to be on-site to receive my delivery?

                      Yes, if you are not available, please kindly arrange another person to accept and unload the materials on your behalf.

                      What's your return and refund policy?

                      Returns must be made within 7 days of purchase and a restocking fee of 30% of the value of the goods returned will be applied. Some custom made products cannot be returned.

                      Following items are excluded from above policy and thus return or refund is not accepted:

                      • All sheet products including Plasterboard, Villaboard and other fibre cement  products.
                      • All ceiling tiles products.

                      For further information, please read our Returns Policy.

                              View full details

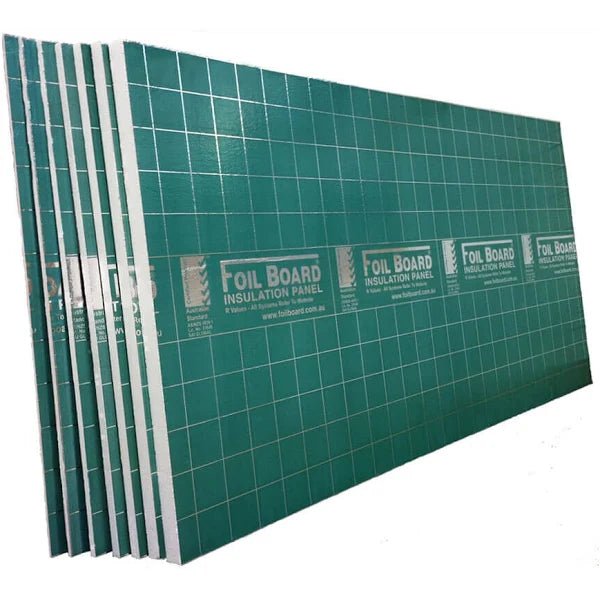

                              What is Foilboard?

                              It’s the rigid insulation panel for under your floors, in your walls, in your roof and even to line your man-caves & sheds.

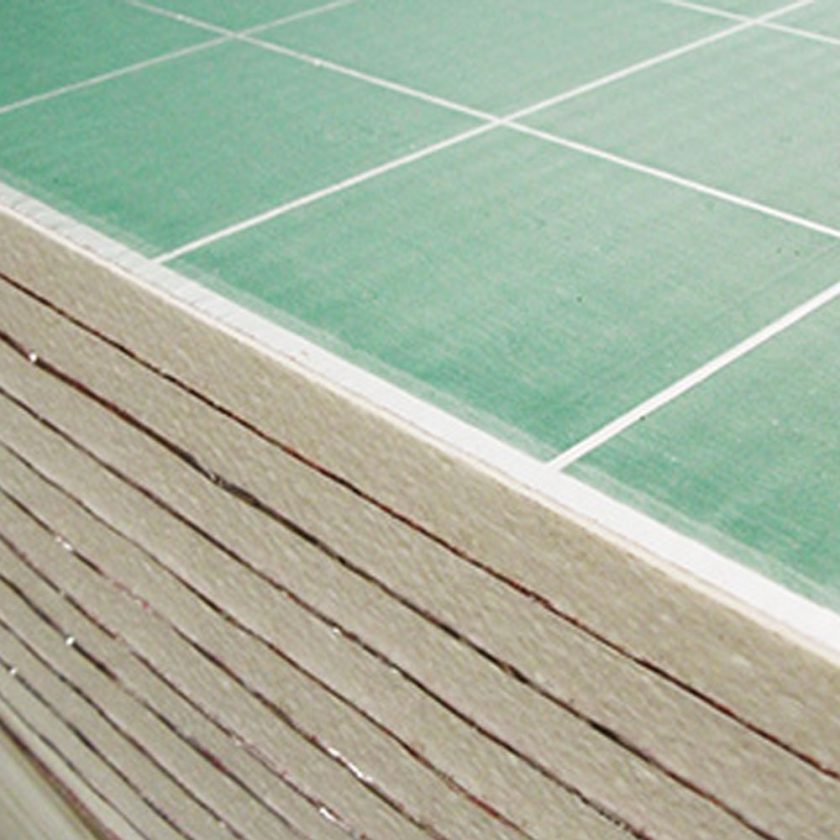

                              Manufactured in Australia from a fire retardant expanded polystyrene core (FR-EPS) with pure aluminium foil directly laminated to both sides, creating a SUPERIOR INSULANT, THERMAL BREAK and NON-PERMEABLE MOISTURE BARRIER.

                              Foilboard GREEN has been engineered and designed to ensure a quick and easy installation of a non-itchy, fibre free rigid insulation panel that will provide continuous thermal performance for the life of the building.

                              Foilboard

                              How Does Foil Insulation Work?

                              Foil Insulation works by using the basic laws of heat and cold to its advantage in order to insulate a building. Once installed, reflective foil insulation panels create a barrier between the inside of a property and the external environment. In the case of a hot day, foil insulation panels will reflect heat back out and away from a building, preventing it from getting too hot.

                              What is R-values achieved for Foilboard?

                              Total R value is the total of each and every element that makes up the construction of a building, and includes wall/ceiling/underfloor applications such as brick, plaster, internal air, cement sheeting and so on.

                              Added R value is what the Foilboard Insulation Panel combined with the adjacent still reflective airspaces adds to a particular system. The actual amount of airspace adjacent to the material will have a profound impact on the R value – the larger the space, the higher the R value. If the airspaces are ventilated or classified as open the R values will not be very high at all.

                              Can Foilboard Green panel be installed in conjunction with Bulk Insulation?

                              Yes. Although the Foilboard Green panel is designed to replace the need for bulk insulation, you can combine the two if your design and energy rating requirements call for it. For technical advice on how to best achieve this, please contact the Foilboard technical department.

                              Why is one side green & the other silver?

                              The Foilboard Green panel is designed as a pure aluminum faced product, one side is coated in a green anti-glare layer for use in applications where the sun may create a glare issue on the construction site. The Antiglare green does not affect the performance of the product.

                              Foilboard

                              Tips for cutting Foilboard?

                              • Always use a sharp knife. This will ensure that the edges are clean and precise.
                              • Always use a backing material to avoid cutting into the floor.
                              • Use a steep angle when cutting the board to reduce damage to the styrene underneath.
                              • Always measure twice and cut once. It’s better to cut a little extra than cut too short.

                              How does Foilboard Green compare to traditional wrap & batts?

                              Foilboard Green Insulation Panel eliminates the need for the supply and installation of two separate products at different stages of construction. It also speeds up the construction process by getting you up to lock up stage much sooner.

                              The most important benefit of the Foilboard Green range is that it provides a true thermal break around a building whilst also giving equal and greater R Values compared with labor intensive batts & wrap.

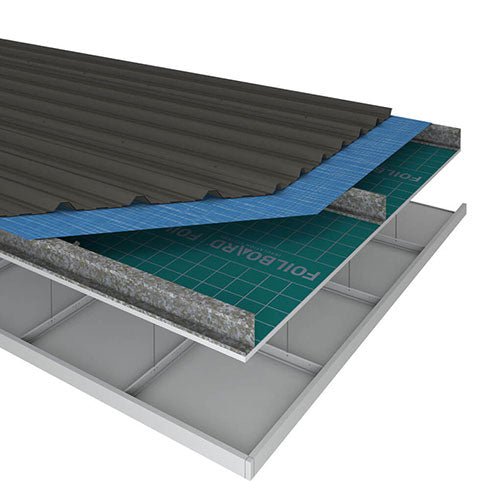

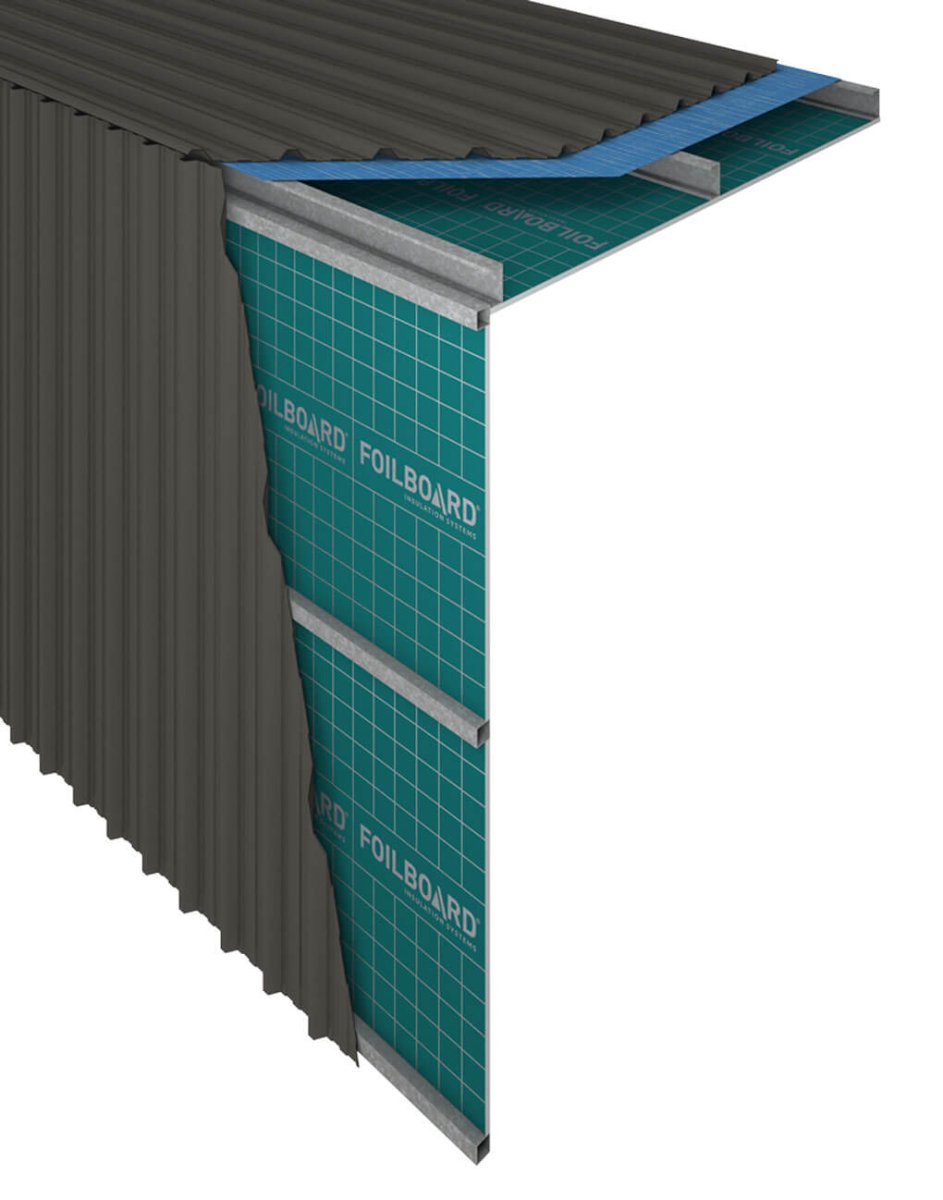

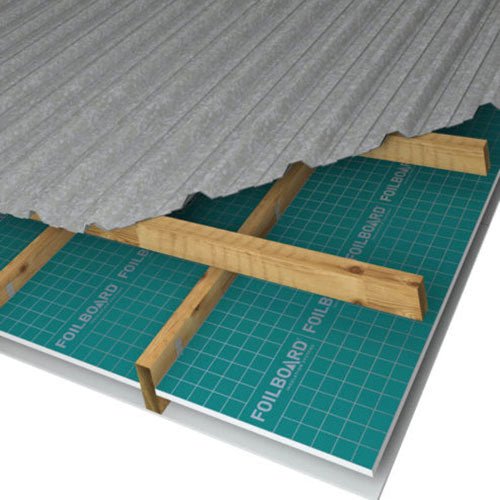

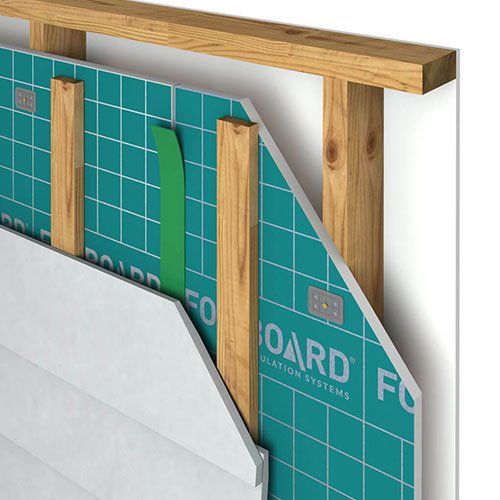

                              Where can Foilboard be used?

                              Foilboard can be used almost anywhere from walls, floors or ceilings within any residential and commercial project, it is even widely used to insulate sheds and factories. There are endless possibilities to where foilboard can be used to insulate.

                              How does it work?

                              Foilboard uses its aluminum surfaces to reflect both heat & cold energy sources. This means that in summer the heat on the outer side of Foilboard is reflected off the building, whilst also reflecting the cooler energy back inside. In winter the cold is reflected off the external side whilst the heat is reflected back into the room. Foilboard is able to achieve this by creating a thermal-break with low thermal conductivity – it slows / stops the transfer of heat or cold, preventing the flow of energy (hot or cold) between the two different sides of the panel. The system is also aided by using the still (unventilated) air spaces adjacent to the Foilboard surfaces, transforming the naturally still air next to Foilboard into a reflective air space. This dramatically increases the R-value of the air gap.
