Description

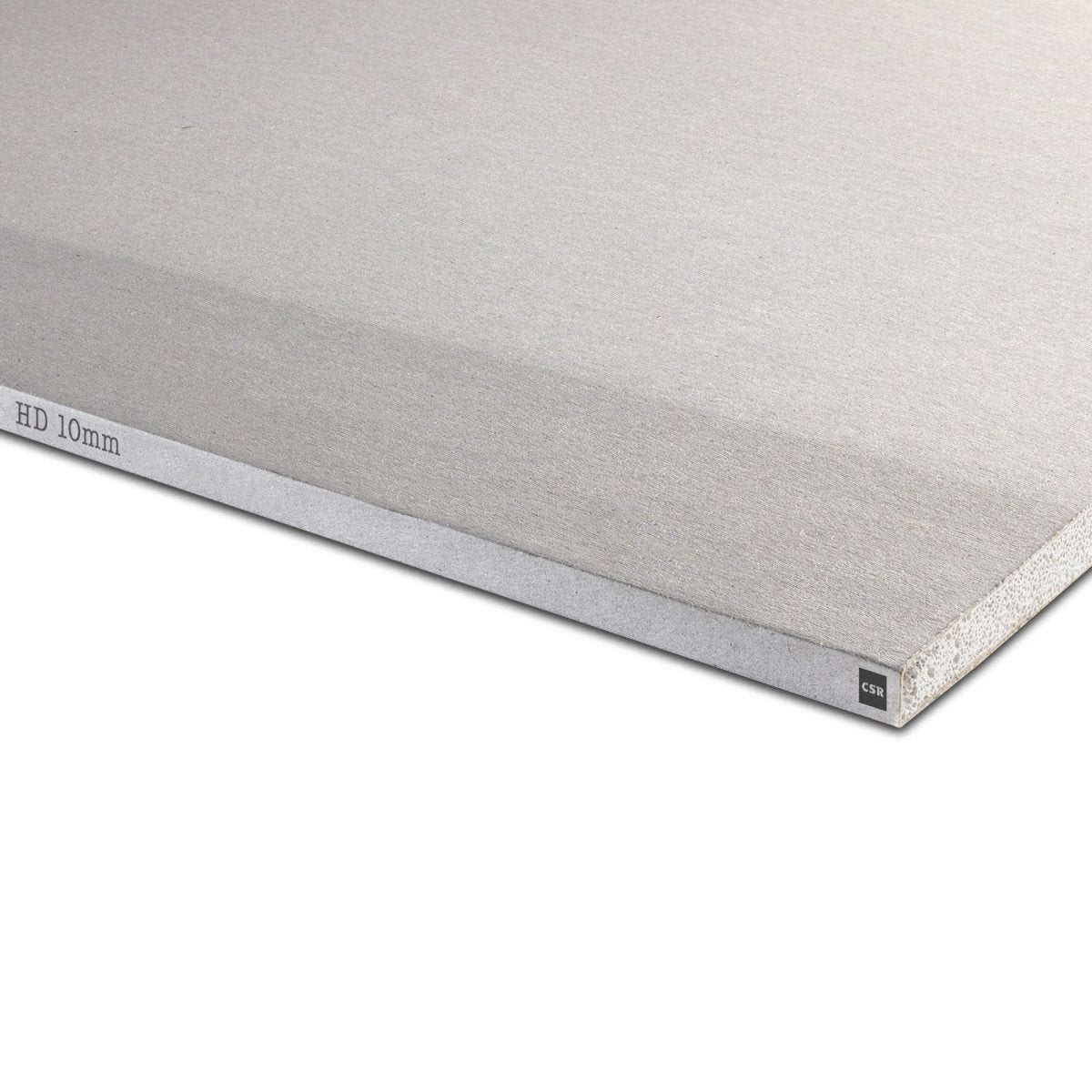

When heavy-duty calls, Gyprock HD has you covered. Featuring a high-density core and heavy-duty liner paper providing enhanced impact and acoustic performance, Gyprock HD is the perfect premium upgrade for residential walls and ceilings.
Product Overview
Gyprock HD is manufactured with a high-density core and a heavy-duty liner paper to provide enhanced acoustic properties and resistance to soft and hard body impact.
While Gyprock Plus provides everyday durability, HD is the perfect all round premium 10mm plasterboard that has enhanced resistance to dents, scuffs, and scrapes from things such as furniture and school bags and is up to 75% more impact resistant compared to Gyprock Plus 10mm.
Manufactured with a high-density core, HD also provides a reduction in sound transmission compared to walls lined with standard 10mm plasterboard, creating a more comfortable, quieter environment.
HD is a versatile product that is suitable for both walls and ceilings in residential applications and is formulated to contain 10% recycled content.
Typical Applications
Gyprock HD is ideal for use in residential walls and ceilings particularly in those areas subject to high traffic such as corridors, hallways, rumpus and games rooms, mud rooms and children’s bedrooms. When installed in ceilings of multi-storey homes, HD can also reduce noise levels between floors.
Gyprock HD is not suitable where it would be in contact with water or constant relative humidity above 90%.
Tested Impact Performance
Gyprock impact resistant plasterboard products are manufactured with a heavier lining paper, and special additives to enhance the durability of their core. When compared to Gyprock Plus 10mm, Gyprock HD provides up to 75% more impact resistance and is the perfect product for areas subject to high traffic.
Hard body impact
Hard body impact is assessed by dropping a 50mm steel ball onto the plasterboard surface from increasing heights.
Soft body impact
Soft body impact testing sees a weighted bag swung on a pendulum, striking the plasterboard surface.
Superior Acoustic Performance
Gyprock acoustic plasterboard products fall into two categories – those for preventing sound transmission, and those designed to provide sound absorption. Sound transmission products are manufactured with a denser core, providing a physical barrier to prevent sound moving to adjoining spaces. Absorptive plasterboard products feature perforations to help reduce echo and improve acoustics within a room.
While the selection of an acoustic plasterboard lining alone will improve performance, CSR provides a range of wall and ceiling systems which deliver superior results for transmission or absorption, through a combination of plasterboard, insulation, fixing methods, plenums and framing configuration.
Product Options
Gyprock HD is available in the following sizes:
| Thickness |
10mm |
| Widths |
1200mm
1350mm |
| Lengths |
3600mm
4200mm
4800mm |
| Edge Profiles |
Recessed Edge for regular jointing, |
Manufacturing Tolerances
| Nominal Thickness |
10mm ± 0.4mm |
| Nominal Widths |
1200mm and 1350mm ± 3mm |
| Nominal Lengths |
From 3600mm to 4800mm ± 5mm, typically in 600mm increments |
| Squareness |
Cut ends ± 3mm in the width of the board |
Physical Properties
| Nominal Board Weight*
|
8.5kg/m2
|
Thermal Performance:
R-Value |
0.04 – 0.05 m2K/W |
| Fire Hazard Properties∆
|
Group No = 1
SMOGRARC <100 m2/s2
|
| Combustibility◊ |
Plasterboard may be used wherever a non-combustible material is required. |
Total Recycled Content
|
10% |
*Subject to reasonable manufacturing variance.
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a)
∆ In accordance with AS ISO 9705 and AS 5637.1
