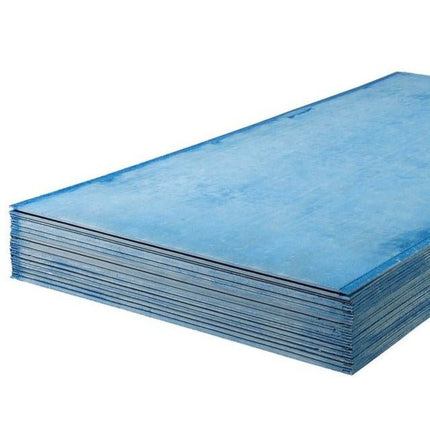

Made by James Hardie for over 20 years, Hardie™ Tex Base Sheet is the original blue board. Hardie™ Tex Base Sheet is a strong, pre-primed base sheet that is finished on-site with a specialised texture coat system*. Hardie™ Tex Base Sheet is the original way to create a decorative, monolithic rendered look without the need for masonry.

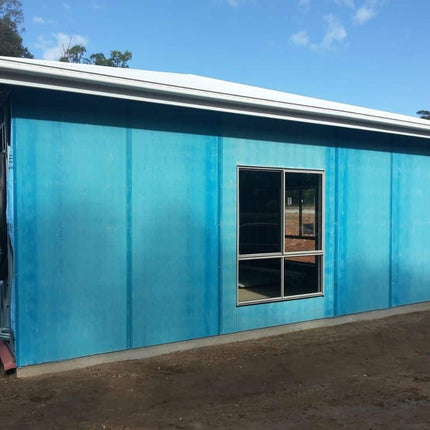

Hardie™ Tex Base Sheet is suitable for use as an external cladding in residential homes, including renovations and extensions, where a lightweight system with a monolithic rendered look is required. For an even easier solution choose Hardie™ Fine Texture Cladding, an 8.5mm thick panel featuring a v-groove joint, which has the render texture embedded in the panel.

*Products are to be installed in accordance with the relevant and current Product Installation Guide and Technical Documentation

Features & Benefits

Durable

Engineered to endure. Hardie’s fibre cement is resistant to fire, termites, rot and damage from moisture.

Speed of Installation

Gun-nail to timber frames or screw to light gauge steel frames.

Fire Resistant

Adheres to bushfire attack level requirements to BAL29. Fire rating up to 60 minutes when used with Hardie™ Smart wall systems.

Render Look

A fibre cement broad wall solution with a textured finish to give the look of a rendered wall without the weight or hassle of brick work.

Product Specifications

Product Code	400291	400294	401651
Length (mm)	3000	2725	2440
Width (mm)	1200	1200	1200
Thickness (mm)	7.5	7.5	7.5
Surface Texture	Smooth	Smooth	Smooth
Effective Cover Per Unit (m2)	3.6	3.27	2.93
Effective Width (mm)	1200	1200	1200
Coverage Per Pack (m2)	108	98.1	87.8
Mass (kg/m2)*	10.1	10.1	10.1
Weight Per Unit**	36.36	33.027	29.6
Pack Weight (kg)***	1220	1200	990

* M2 weight includes on the wall product only weight taking into account effective coverage. This excludes fasteners, sealants and other accessories.

** Piece weight covers the physical product weight per plank/sheet.

*** Pack weight includes all product and packaging in a full pallet.
