Description

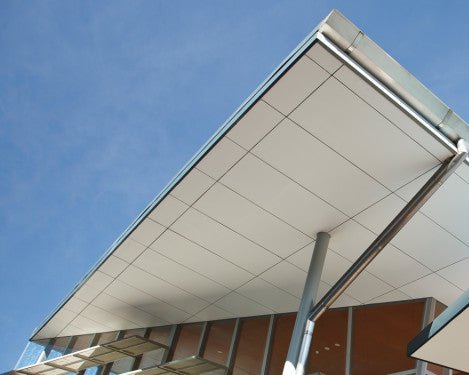

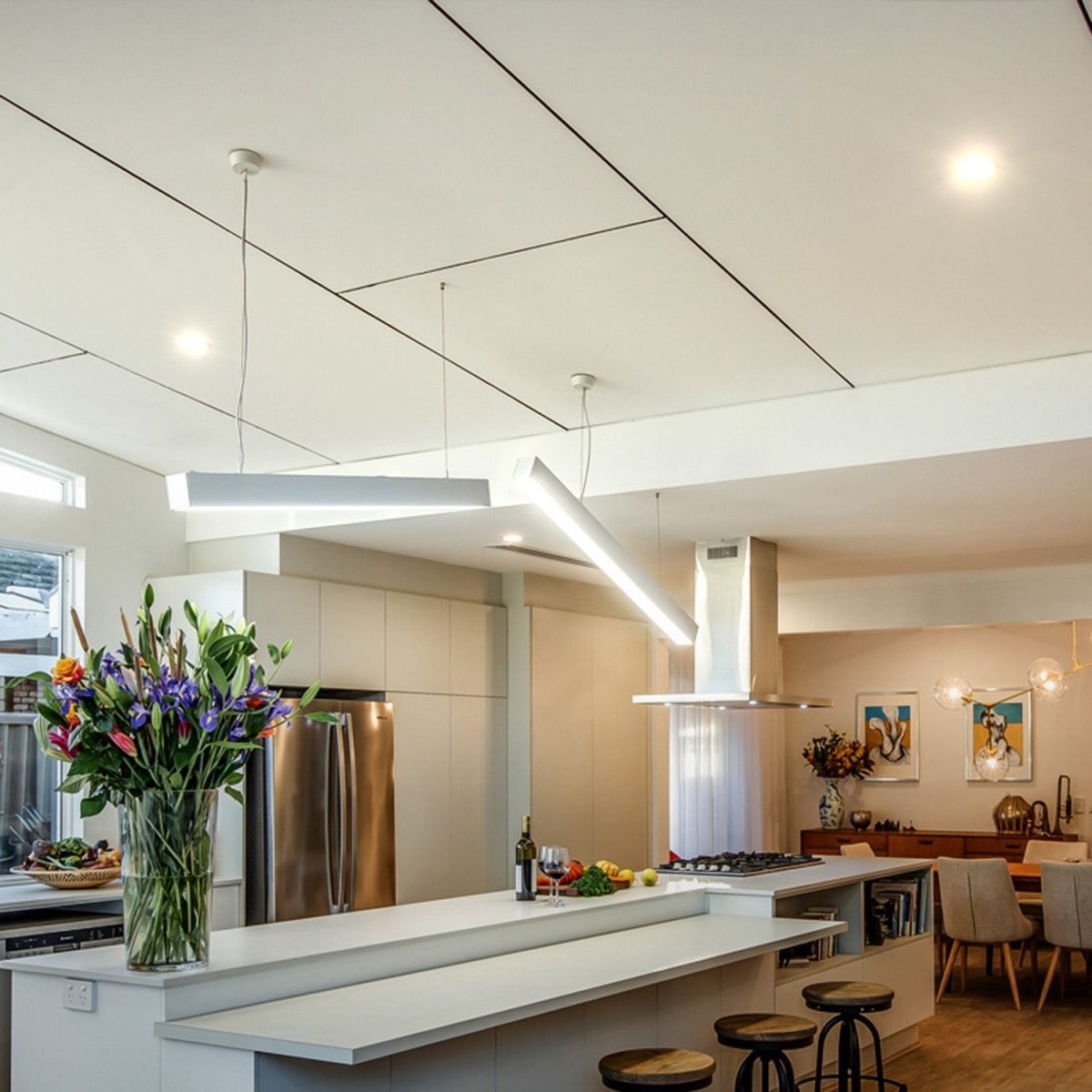

As a versatile interior wall sheet, Versilux™ Lining can be used in laundries, kitchens and high-traffic areas. It is also popular when used as a soffit and can be installed in exposed beam ceilings. Unlike Villaboard, Versilux is square on the long edges for making butt joins and accessory joins doing away with set joints that require extra finishing time and cost. As a versatile wall sheet it’s easy to achieve a range of looks using straight PVC jointers, the black PVC express jointer accessory or Axent Trim as battens over the joints.6mm sheets can also be used as bracing when installed in accordance with James Hardie’s Structural Bracing Application guide.
Durable
Engineered to endure. Hardie™ fibre cement is resistant to fire, termites, rot and damage from moisture.
Speed of Installation
Gun-nail to timber frames or screw to light gauge steel frames. Pre-sealed and ready for paint
Fire Resistant
6mm sheets can be used in Fire rating up to 60 minutes when used with HardieSmart™ wall systems.
Product Specifications
| Product Code |
404776 |
404777 |
404778 |
| Length (mm) |
3000 |
2400 |
3600 |
| Width (mm) |
1200 |
1200 |
1200 |
| Thickness (mm) |
6 |
6 |
6 |
| Effective Cover Per Unit (m2) |
3.6 |
2.88 |
4.32 |
| Effective Width (mm) |
1200 |
1200 |
1200 |
| Coverage Per Pack (m2) |
108 |
86.4 |
129.6 |
| Mass (kg/m2)* |
9.62 |
9.62 |
9.62 |
| Weight Per Unit** |
34.63 |
27.71 |
41.56 |
| Pack Weight (kg)*** |
1062 |
840 |
1281 |
* M2 weight includes on the wall product only weight taking into account effective coverage. This excludes fasteners, sealants and other accessories.
** Piece weight covers the physical product weight per plank/sheet.
*** Pack weight includes all product and packaging in a full pallet.
