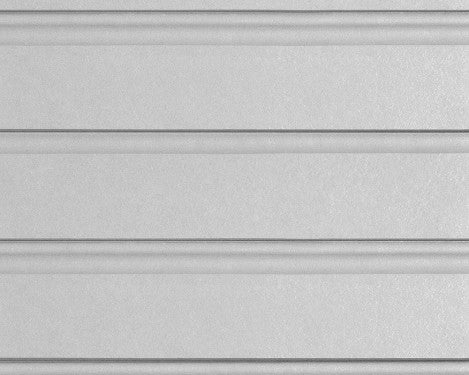

Available in styles to match many heritage weatherboard homes, PrimeLine™ Weatherboards are a durable range of 9mm thick weatherboards for creating classic lines without the wonkiness of timber. The Primeline Chamfer profile has clean lines and comes in a double board height for fast installation. The Primeline Newport profile features narrow boards with a rebate to deepen the overlap shadow line, and is compatible with the HardieLock system for fast lap alignment. For extra shadow lines, Primeline Heritage weatherboard profile has a rebated edge and comes in double board height for fast installation.

Durable

Engineered to endure. Hardie’s fibre cement is resistant to fire, termites, rot and damage from moisture.

Speed of Installation

Gun-nail to timber frames or screw to light gauge steel frames. Pre-primed and ready for paint.

Fire Resistant

Adheres to bushfire attack level requirements to BAL40. Fire rating up to 60 minutes when used with HardieSmart™ wall systems.

Timber Look

Fibre cement with the charm of timber without the longevity issues of shrinking, swelling and warping to retain its looks for longer.

Product Specifications

Product Code	400153	400103	400319

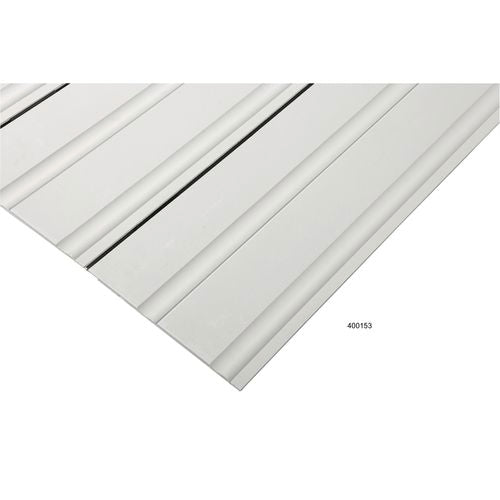

Description	Primeline Weatherboard Heritage	Primeline Weatherboard Chamfer	Primeline Weatherboard Newport
Length (mm)	4200	4200	4200
Width (mm)	300	300	170
Thickness (mm)	9	9	9
Surface Texture	Smooth	Smooth	Smooth
Effective Cover Per Unit (m2)	1.17	1.17	0.6
Effective Width (mm)	278	278	-
Coverage Per Pack (m2)	105.3	105.3	72
Linear Meters Per Pack	378	378	504
Mass (kg/m2)*	13	13.04	13.17
Weight Per Unit**	15.21	15.26	7.9

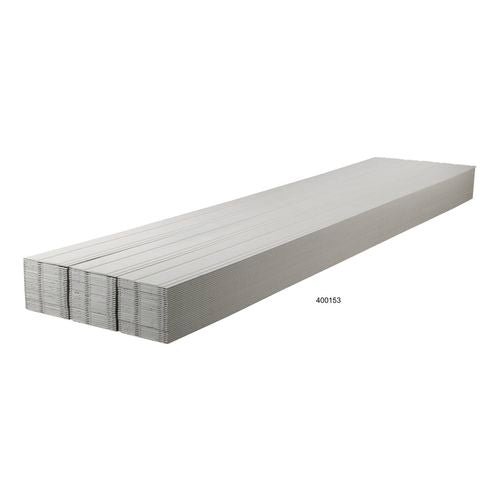

Pack Weight (kg)***	1368.9	1373.11	948.24

* M2 weight includes on the wall product only weight taking into account effective coverage. This excludes fasteners, sealants and other accessories.

** Piece weight covers the physical product weight per plank/sheet.

*** Pack weight includes all product and packaging in a full pallet.
