Achieve a range of sleek looks with customisable Stria™ Cladding. Featuring deep grooves, Stria™ Cladding creates strong horizontal or vertical line details in modern home designs. Clean and sophisticated, Stria™ Cladding is the perfect solution for contemporary designs that require a bold but pared-back aesthetic.

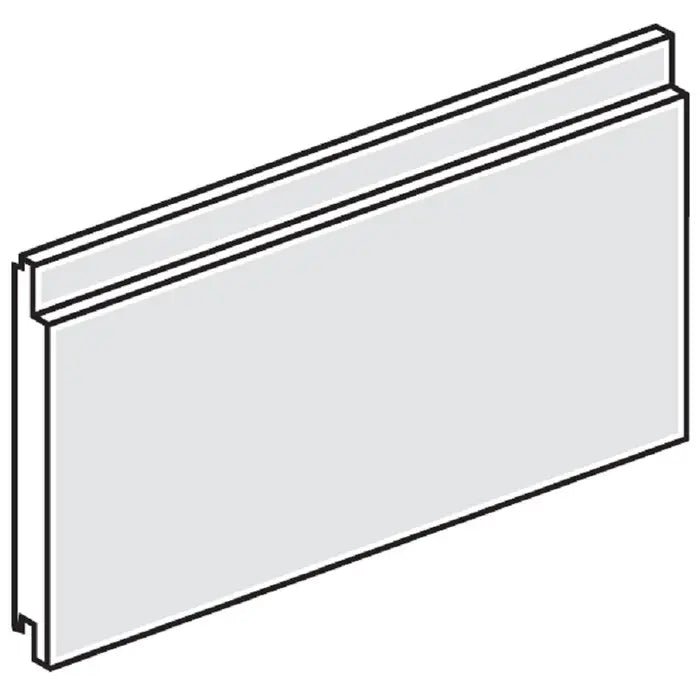

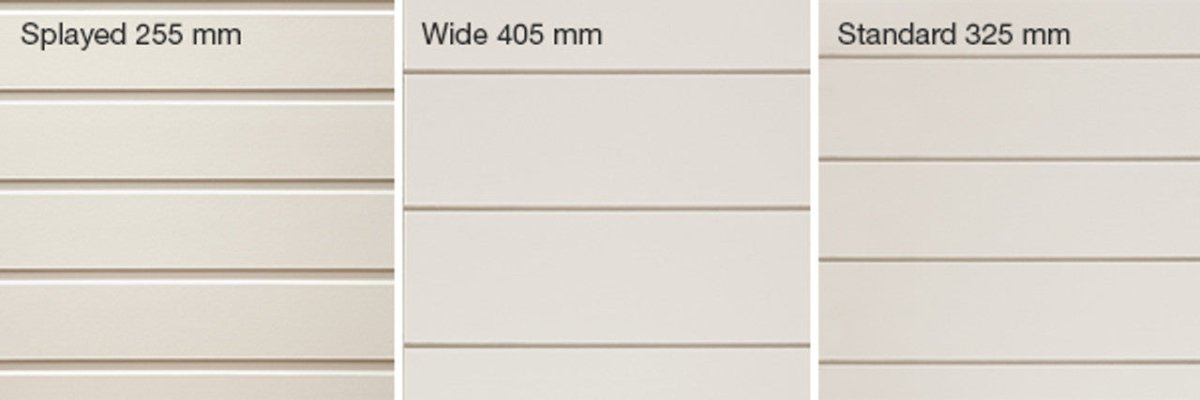

Available in 325mm and 405mm widths, the boards are 14mm thick with shiplap joints that leave 15mm-wide horizontal grooves for strong, clean lines. Introduce design versatility into your home by varying the application and switch between widths, orient the boards vertically, or panelise them with the vertical flashing stop accessory.

Durable

Engineered to endure. Hardie™ fibre cement is resistant to fire, termites, rot and damage from moisture.

Speed of Installation

Gun-nail to timber frames or screw to light gauge steel frames. Pre-primed and ready for paint.

Flexible Colour

Pre-textured, pre-sealed and paint-friendly. Choose a low sheen exterior paint in any colour.

Fire Resistant

Adheres to bushfire attack level requirements to BAL40. Fire rating up to 60 minutes when used with HardieSmart™ wall systems.

Product Specifications

Product Code	405504	404063	405505	404413
Description	Stria™ Cladding 325mm	Stria™ Cladding 325mm	Stria™ Cladding 405mm	Stria™ Cladding 405mm
Length (mm)	3000	4200	3000	4200
Width (mm)	325	325	405	405
Thickness (mm)	14	14	14	14
Surface Texture	Smooth	Smooth	Smooth	Smooth
Effective Cover Per Unit (m2)	0.9	1.26	1.14	1.6
Effective Width (mm)	300	300	380	380
Linear Meters Per Pack	180	252	120	168
Mass (kg/m2)*	19.1	18.93	19.5	18.93
Weight Per Unit**	17.2	24.1	22.2	31

* M2 weight includes on the wall product only weight taking into account effective coverage. This excludes fasteners, sealants and other accessories.

** Piece weight covers the physical product weight per plank/sheet.

*** Pack weight includes all product and packaging in a full pallet.
