- Sku: CSR13FR1227
CSR Gyprock 13mm Fyrchek Plasterboard RE
Product Description
Gyprock Fyrchek has been developed to take the heat. Fyrchek’s specially processed glass fibre-reinforced gypsum core makes it ideal for use in fire rated wall and ceiling systems and where improved acoustic performance is required.
Product Overview
Fyrchek’s glass fibre-reinforced core enables it to maintain structural integrity when subjected to direct flame making it an ideal board for use as part of a fire rated wall or ceiling system.
This plasterboard is also an acoustic grade board and can be used in systems where acoustic separation is specified.

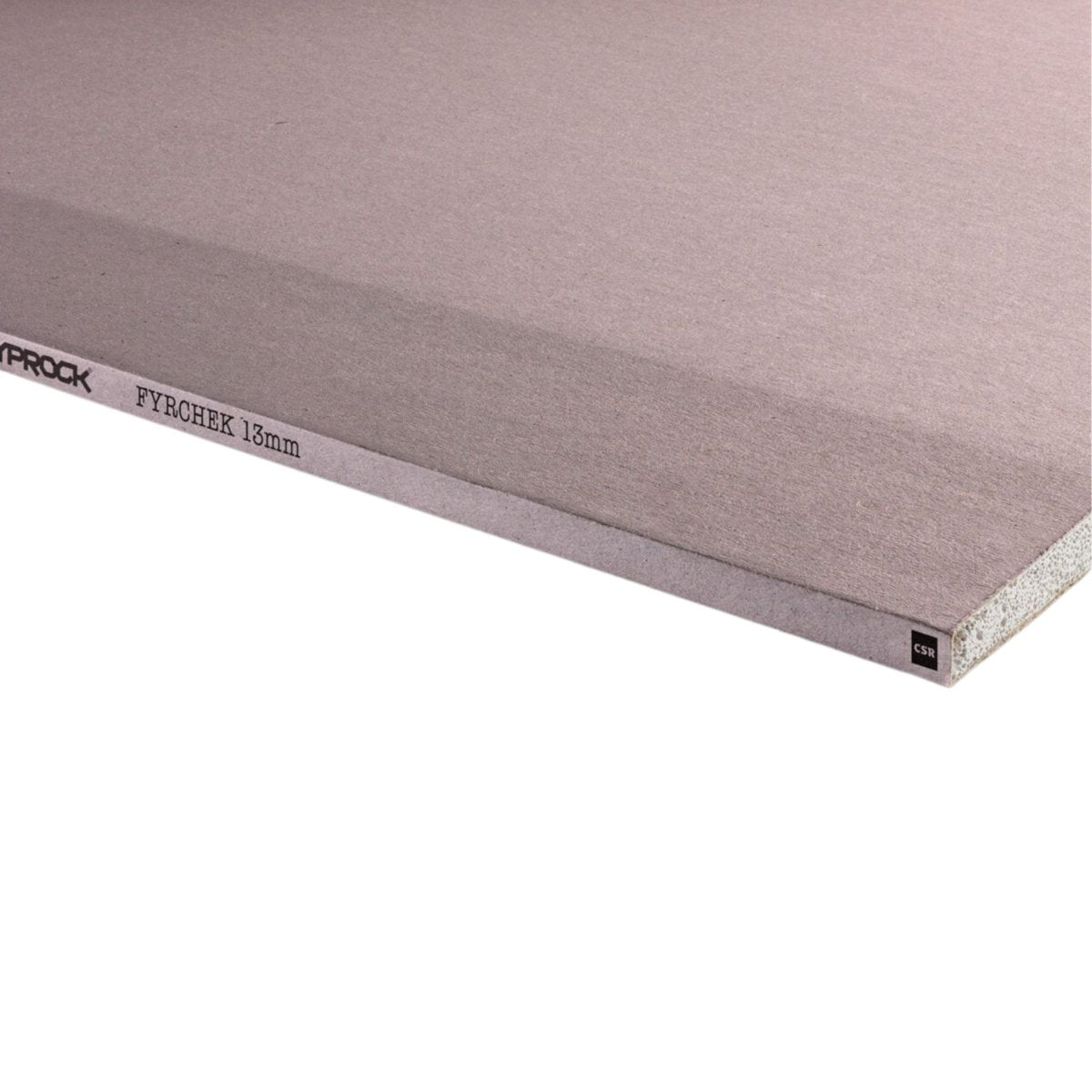

Gyprock Fyrchek can be easily identified by its pink coloured face paper.
Typical Applications
Fyrchek is predominantly specified for commercial installations in areas where there is a higher level of fire resistance and/or acoustic performance required.
Typical applications include:
- Fire separation and smoke walls
- Intertenancy walls and party walls
- Multi-residential unit ceilings
- Lift wells
- Plant rooms
- Any non-wet area wall or ceiling where a fire or acoustic rated system is specified
Tested Fire Performance
Gyprock fire rated plasterboard products are manufactured with special additives to enhance their fire resistance properties. The additives slow the progress of heat and flame, and when used as part of a CSR fire rated system, provide performance options suitable for many construction types.
CSR provides a range of wall and ceiling systems, junction and penetration details, which meet and exceed the requirements of the Building Code of Australia. These solutions often include a combination of plasterboard, insulation, sealants and accessories to reach various performance criteria.
Product Options
Gyprock Fyrchek is available in the following sizes:
| Thickness | 13mm 16mm |
| Widths | 1200mm 1350mm |
| Lengths | 2400mm 2700mm 3000mm 3600mm 4200mm 4800mm |
| Edge Profiles | Recessed Edge for regular jointing |
Manufacturing Tolerances
| Nominal Thickness | 13mm and 16mm ± 0.5mm |
| Nominal Widths | 1200mm and 1350mm ± 3mm |
| Nominal Lengths | From 2400 to 4800 ± 5mm, typically in 300mm increments |
| Squareness | Cut ends ± 3mm in the width of the board |
Physical Properties
| 13mm | 16mm | |
| Nominal Board Weight* | 10.5kg/m2 | 12.5kg/m2 |
| Thermal Resistance | 0.05 - 0.07 m2K/W | 0.07 – 0.09 m2K/W |
| Fire Hazard Properties∆ | Group No = 1 SMOGRARC <100 m2/s2 |
|
| Combustibility◊ | Plasterboard may be used wherever a non-combustible material is required. | |
| Total Recycled Content |
9.1% | 9.0% |
* Subject to reasonable manufacturing variance
∆ In accordance with AS ISO 9705 and AS 5637.1
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).
Where does Wall Ceiling deliver to?
Wall Ceiling is delighted to offer plasterboard delivery to metro cities throughout Australia.
For regional areas, please email us at info@wallceiling.com.au with the items and quantities you need from our website, and we will promptly provide a manual quote.
How much do you charge for delivery?
Customer will receive an accurate delivery charge during checkout.
How long does it take to deliver the order and how much it will cost?
Delivery time frame varies by location:
| Location | Delivery Time Frame | Delivery Cost |
| Metro NSW | 1 - 2 business days | Starts from $45 |
| Metro VIC | 3 - 5 business days | Starts from $125 |
| Metro QLD | 3 - 5 business days | Starts from $125 |
| Metro WA | 3 - 5 business days | Starts from $125 |
Some products may have a longer lead time which we will inform you as early as possible.
Who is responsible for unloading the materials off the truck?
Our delivery driver will assist you to unloading the materials next to the truck. However, it is the customer's responsibility to move the materials beyond that point.
Do you offer crane truck delivery?
No, we found hand unload or forklift on site is the most effectively way to unload plasterboard products.
What time will truck arrive during the delivery day?
It's difficult to predict precise delivery time due to factors such as traffic and weather conditions.
To facilitate a smooth delivery process:
- Our office will schedule and confirm delivery date with you after receiving your order.
- On the day of delivery, our driver will contact you before dispatching from warehouse to ensure you are prepared.
Do I need to be on-site to receive my delivery?
Yes, if you are not available, please kindly arrange another person to accept and help with unloading on your behalf.
Have a question?
Introduction
Among the various safety measures, fire protection stands out as a critical area. This is where Gyprock's fire-rated wall and ceiling systems come into the picture. Designed to enhance the fire resistance of buildings, these systems are essential for both commercial and residential constructions.
What is fire resistant plasterboard?
Fire-resistant plasterboard, often referred to as fire-rated or fireproof plasterboard, is a specialized type of drywall designed to resist the spread of fire. Unlike standard plasterboard, which is made primarily of gypsum sandwiched between layers of paper, fire-resistant plasterboard includes materials that enhance its ability to withstand high temperatures.
What is Gyprock Fyrchek?
Gyprock Fyrchek is a specially formulated plasterboard designed for use in fire and acoustic wall and ceiling systems. Known for its pink face paper, this plasterboard incorporates a fire-resistant gypsum core reinforced with glass fibres and other additives to enhance its fire-retardant properties. It's an ideal choice for areas requiring increased fire protection, such as inter-tenancy walls, shafts, and public spaces in commercial and multi-residential buildings.
Features of CSR Gyprock Fire Rated Systems
-
Material Composition: Made from gypsum, a naturally fire-resistant material. Gyprock products are engineered to resist high temperatures.
-
Tested Fire Rated Systems: These systems come with various fire resistance levels, suitable for different building requirements.
-
Compatibility: They are compatible with a range of building designs, ensuring that safety doesn't compromise aesthetics.
-
Certification: All CSR Gyprock fire-rated products are certified and comply with the relevant Australian standards for fire safety.
Applications
- Commercial Buildings: In offices and commercial spaces, where the risk of fire can be higher due to electrical equipment and heavy foot traffic.
- Residential Constructions: Homes can benefit from these systems, especially in kitchens and garages where fire risks are common.
- Public Facilities: Hospitals, schools, and other public buildings use these systems for enhanced safety.
Installation and Maintenance
While CSR Gyprock systems are designed for easy installation, it's crucial to have them installed by professionals. Proper installation ensures that the fire-rated systems function as intended. Maintenance is relatively straightforward, requiring regular inspections to ensure integrity and performance.
Where to buy
Gyprock Fyrchek offer a blend of safety, functionality, and design compatibility. They are an excellent choice for anyone looking to enhance fire safety in their building projects. Please place an online order with us or simply Contact Us for more details.
