Gyprock Fyrchek has been developed to take the heat. Fyrchek’s specially processed glass fibre-reinforced gypsum core makes it ideal for use in fire rated wall and ceiling systems and where improved acoustic performance is required.
Product Overview
Fyrchek’s glass fibre-reinforced core enables it to maintain structural integrity when subjected to direct flame making it an ideal board for use as part of a fire rated wall or ceiling system.
This plasterboard is also an acoustic grade board and can be used in systems where acoustic separation is specified.

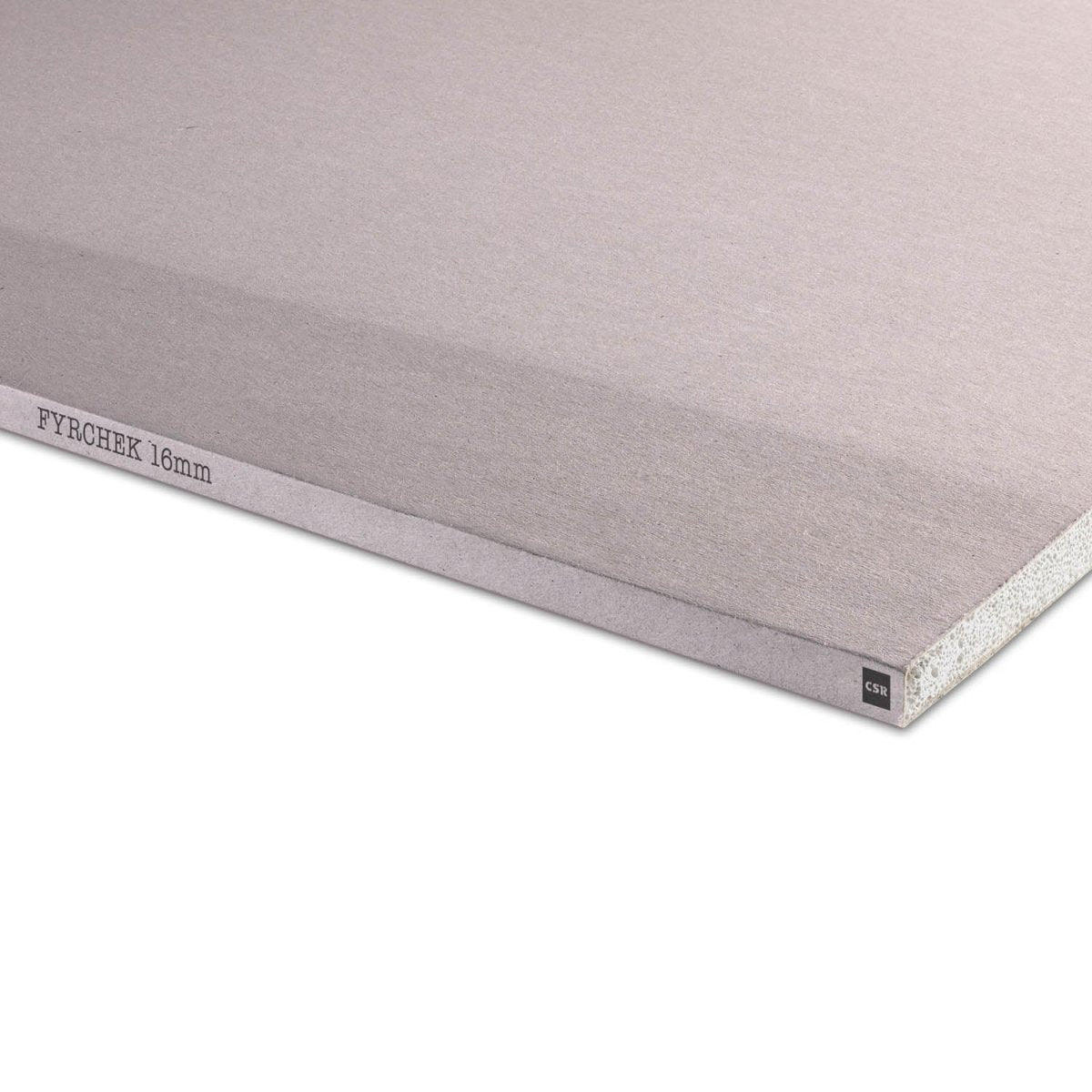

Gyprock Fyrchek can be easily identified by its pink coloured face paper.
Typical Applications
Fyrchek is predominantly specified for commercial installations in areas where there is a higher level of fire resistance and/or acoustic performance required.
Typical applications include:
- Fire separation and smoke walls
- Intertenancy walls and party walls
- Multi-residential unit ceilings
- Lift wells
- Plant rooms
- Any non-wet area wall or ceiling where a fire or acoustic rated system is specified
Tested Fire Performance
Gyprock fire rated plasterboard products are manufactured with special additives to enhance their fire resistance properties. The additives slow the progress of heat and flame, and when used as part of a CSR fire rated system, provide performance options suitable for many construction types.
CSR provides a range of wall and ceiling systems, junction and penetration details, which meet and exceed the requirements of the Building Code of Australia. These solutions often include a combination of plasterboard, insulation, sealants and accessories to reach various performance criteria.
Product Options
Gyprock Fyrchek is available in the following sizes:
| Thickness |
13mm
16mm |
| Widths |
1200mm
1350mm |
| Lengths |
2400mm
2700mm
3000mm
3600mm
4200mm
4800mm |
| Edge Profiles |
Recessed Edge for regular jointing |
Manufacturing Tolerances
| Nominal Thickness |
13mm and 16mm ± 0.5mm |
| Nominal Widths |
1200mm and 1350mm ± 3mm |
| Nominal Lengths |
From 2400 to 4800 ± 5mm, typically in 300mm increments |
| Squareness |
Cut ends ± 3mm in the width of the board |
Physical Properties
|
13mm |
16mm |
| Nominal Board Weight*
|
10.5kg/m2
|
12.5kg/m2
|
| Thermal Resistance |
0.05 - 0.07 m2K/W |
0.07 – 0.09 m2K/W |
| Fire Hazard Properties∆ |
Group No = 1
SMOGRARC <100 m2/s2
|
| Combustibility◊ |
Plasterboard may be used wherever a non-combustible material is required. |
Total Recycled Content
|
9.1% |
9.0% |
* Subject to reasonable manufacturing variance
∆ In accordance with AS ISO 9705 and AS 5637.1
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).
