  • Sku: fb101224

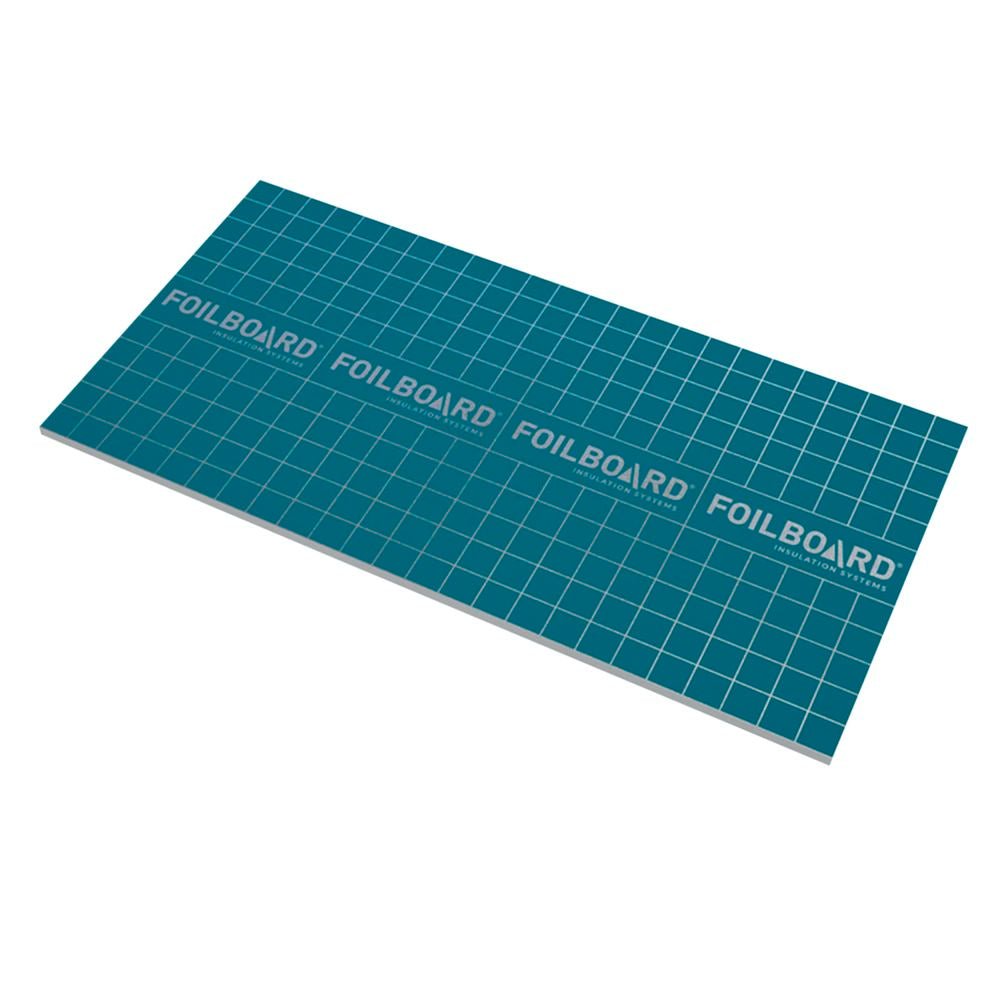

Foilboard 10mm x 2400mm x 1200mm Standard 10 Insulation

$34.00
 per
Delivery cost calculated at checkout.
Size

Product Description

Foil Insulation is an efficient and effective way to improve the thermal efficiency of a home, office or any other building. In essence, reflective foil insulation panels are designed to protect a space from getting too hot in summer and too cold in winter, helping to maintain balanced temperatures all year round.

Product Specifications

Thickness (mm) Width (mm) Length (mm) Sheet (m²)
10 1200 2400 2.88
15 1200 2400 2.88
20 1200 2400 2.88
25 1200 2400 2.88
30 1200 2400 2.88
40 1200 2400 2.88
50 1200 2400 2.88

Delivery Options

Wall Ceiling is delighted to offer plasterboard supply service throughout Australia.

For orders outside of Sydney, please email us at info@wallceiling.com.au with the items and quantities you require from our website, and we will promptly provide a manual quote.

Standard Delivery (7am - 4pm, Monday to Friday).

Standard orders are delivered within 1-3 business days in metro areas and 5-10 days in regional areas. Some products have a longer lead time as indicated on the product page.

Our office will call you before heading to your site. Please ensure adequate labour on site to help with unloading.

Please note:

Only select items are available for pickup.

Please give us a call before visiting. Our friendly staff may be out for delivery, and the warehouse might be unattended during your visit.

Delivery Information

Where does Wall Ceiling deliver to?

Wall Ceiling is delighted to offer plasterboard supply services throughout Australia.

For orders outside of Sydney, please email us at info@wallceiling.com.au with the items and quantities you need from our website, and we will promptly provide a manual quote.

How much do you charge for delivery?

Customer will receive an accurate delivery charge during checkout.

What are the delivery options?

Standard orders are delivered within 1-3 business days in metro areas and 5-10 days in regional areas. Some products have a longer lead time as indicated on the product page.

Bulk orders with weight greater than 1.5T may need longer lead time.

Who is responsible for unloading the materials off the truck?

Our delivery driver will assist with unloading materials adjacent to the truck. However, it is the customer's responsibility to move the materials beyond that point.

What time will truck arrive during the delivery day?

It's difficult to predict precise delivery time due to factors such as traffic and weather conditions; however we will make every effort to deliver within the expected time frame.

Our delivery driver will contact you in advance, ensuring you are ready for the delivery.

Do I need to be on-site to receive my delivery?

Yes, if you are not available, please kindly arrange another person to accept and unload the materials on your behalf.

View full details

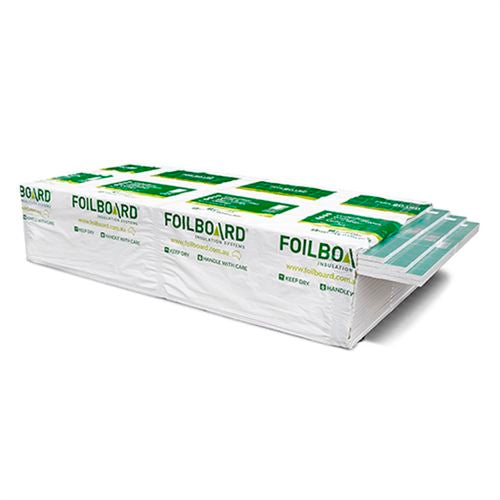

What is Foilboard?

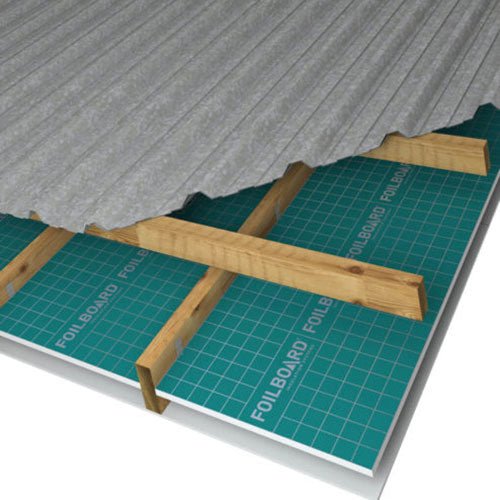

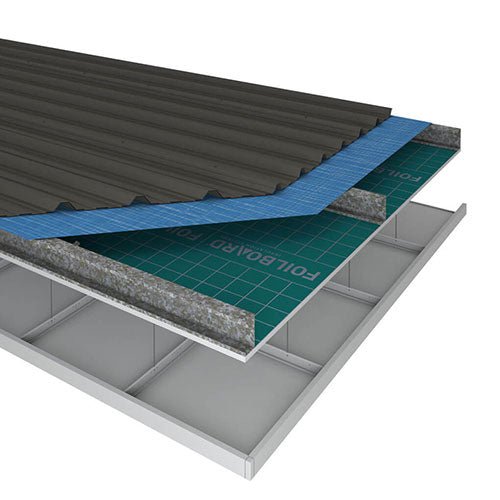

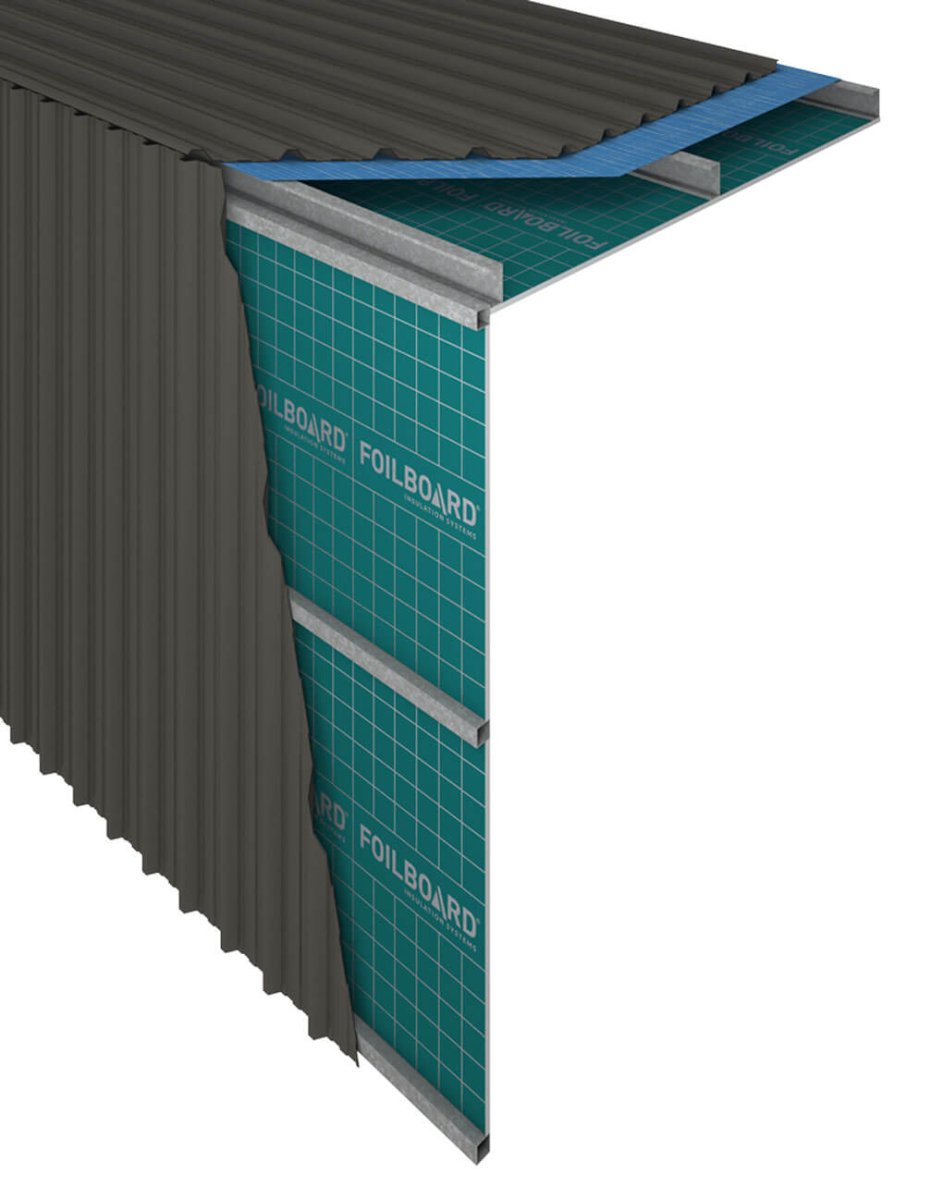

It’s the rigid insulation panel for under your floors, in your walls, in your roof and even to line your man-caves & sheds.

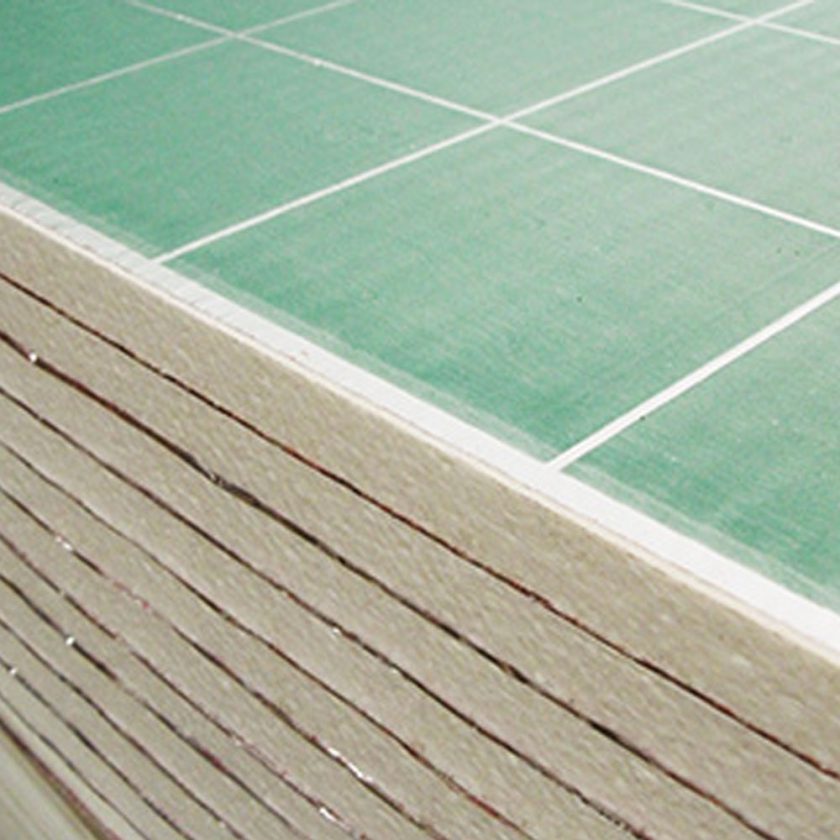

Manufactured in Australia from a fire retardant expanded polystyrene core (FR-EPS) with pure aluminium foil directly laminated to both sides, creating a SUPERIOR INSULANT, THERMAL BREAK and NON-PERMEABLE MOISTURE BARRIER.

Foilboard GREEN has been engineered and designed to ensure a quick and easy installation of a non-itchy, fibre free rigid insulation panel that will provide continuous thermal performance for the life of the building.

Foilboard

How Does Foil Insulation Work?

Foil Insulation works by using the basic laws of heat and cold to its advantage in order to insulate a building. Once installed, reflective foil insulation panels create a barrier between the inside of a property and the external environment. In the case of a hot day, foil insulation panels will reflect heat back out and away from a building, preventing it from getting too hot.

What is R-values achieved for Foilboard?

Total R value is the total of each and every element that makes up the construction of a building, and includes wall/ceiling/underfloor applications such as brick, plaster, internal air, cement sheeting and so on.

Added R value is what the Foilboard Insulation Panel combined with the adjacent still reflective airspaces adds to a particular system. The actual amount of airspace adjacent to the material will have a profound impact on the R value – the larger the space, the higher the R value. If the airspaces are ventilated or classified as open the R values will not be very high at all.

Can Foilboard Green panel be installed in conjunction with Bulk Insulation?

Yes. Although the Foilboard Green panel is designed to replace the need for bulk insulation, you can combine the two if your design and energy rating requirements call for it. For technical advice on how to best achieve this, please contact the Foilboard technical department.

Why is one side green & the other silver?

The Foilboard Green panel is designed as a pure aluminum faced product, one side is coated in a green anti-glare layer for use in applications where the sun may create a glare issue on the construction site. The Antiglare green does not affect the performance of the product.

Foilboard

Tips for cutting Foilboard?

  • Always use a sharp knife. This will ensure that the edges are clean and precise.
  • Always use a backing material to avoid cutting into the floor.
  • Use a steep angle when cutting the board to reduce damage to the styrene underneath.
  • Always measure twice and cut once. It’s better to cut a little extra than cut too short.

How does Foilboard Green compare to traditional wrap & batts?

Foilboard Green Insulation Panel eliminates the need for the supply and installation of two separate products at different stages of construction. It also speeds up the construction process by getting you up to lock up stage much sooner.

The most important benefit of the Foilboard Green range is that it provides a true thermal break around a building whilst also giving equal and greater R Values compared with labor intensive batts & wrap.

Where can Foilboard be used?

Foilboard can be used almost anywhere from walls, floors or ceilings within any residential and commercial project, it is even widely used to insulate sheds and factories. There are endless possibilities to where foilboard can be used to insulate.

How does it work?

Foilboard uses its aluminum surfaces to reflect both heat & cold energy sources. This means that in summer the heat on the outer side of Foilboard is reflected off the building, whilst also reflecting the cooler energy back inside. In winter the cold is reflected off the external side whilst the heat is reflected back into the room. Foilboard is able to achieve this by creating a thermal-break with low thermal conductivity – it slows / stops the transfer of heat or cold, preventing the flow of energy (hot or cold) between the two different sides of the panel. The system is also aided by using the still (unventilated) air spaces adjacent to the Foilboard surfaces, transforming the naturally still air next to Foilboard into a reflective air space. This dramatically increases the R-value of the air gap.
