Description

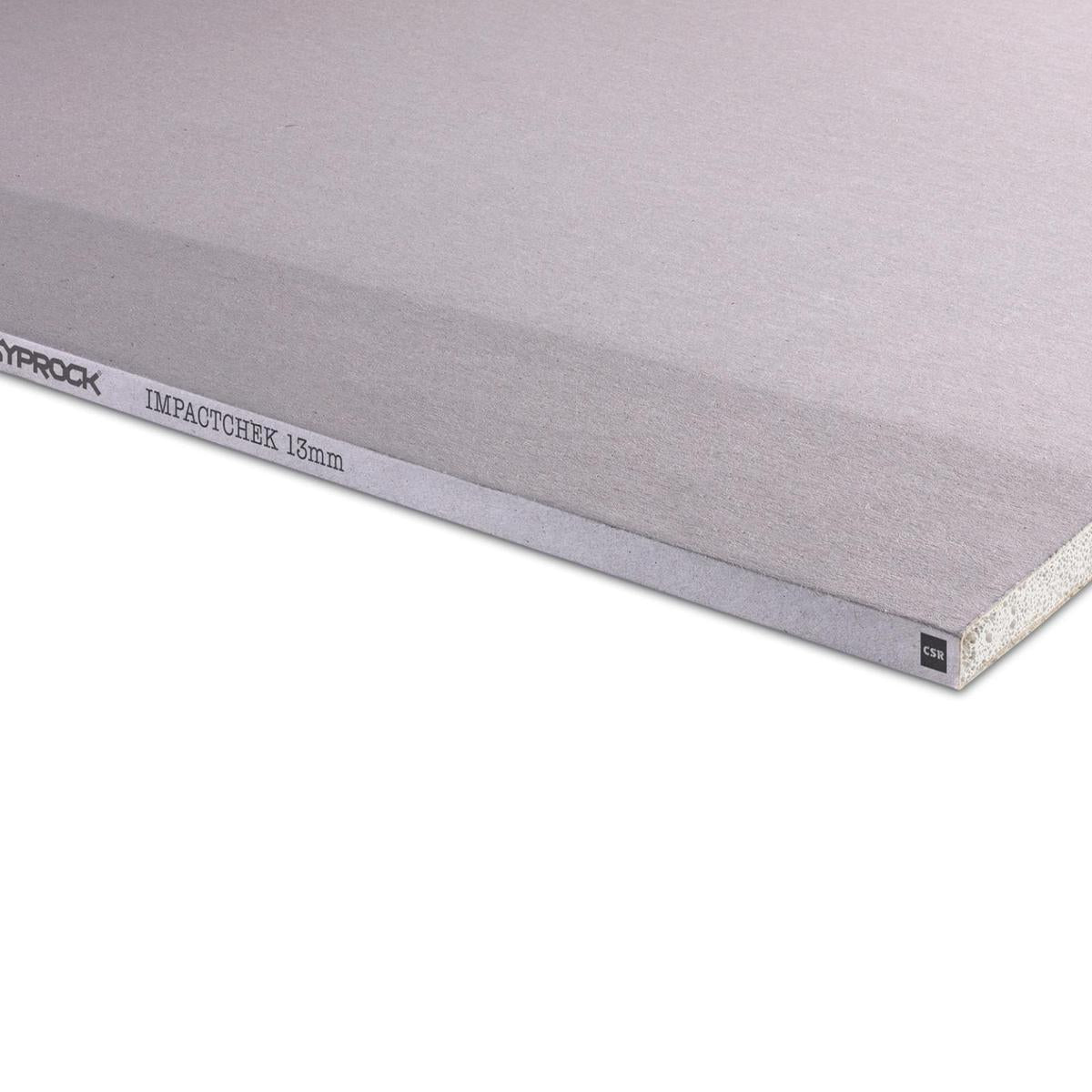

Bustling household or commercial environment? Gyprock Impactchek is a high-strength 13mm thick plasterboard with a reinforced core that is an ideal wall lining for high impact areas.
Product Overview
Impactchek is proven to effectively reduce the damage caused by soft and hard body impact. The layer of glass fibre mesh, denser core and heavy duty lining paper provide a hardier, scuff resistant plasterboard lining for residential and commercial applications.
This plasterboard is also a fire and acoustic grade board, ideal for high impact areas where acoustic separation or a fire rated system is specified.
Typical Applications:
Impactchek is typically used in areas such as corridors, foyers, classrooms, retail walls, games rooms and garages where the risk of damage from soft body impact such as balls and bags and hard body impact such as trolleys and furniture is generally higher.
Tested Impact Performance
Gyprock impact resistant plasterboard products are manufactured with a heavier lining paper, and special additives to enhance the durability of their core. Typically, these products can withstand twice the discernible force of regular plasterboard products, making them ideal for high traffic areas.
Hard body impact
Hard body impact is assessed by dropping a 50mm steel ball onto the plasterboard surface from increasing heights.
Soft body impact
Soft body impact testing sees a weighted bag swung on a pendulum, striking the plasterboard surface.
Product Options
Gyprock Impactchek is available in the following sizes:
| Thickness |
13mm |
| Widths |
1200mm
|
| Lengths |
2400mm
2700mm
3000mm
3600mm
4200mm
4800mm |
| Edge Profiles |
Recessed Edge for regular jointing. |
Manufacturing Tolerances
| Nominal Thickness |
13mm ± 0.5mm |
| Nominal Widths |
1200 ± 3mm |
| Nominal Lengths |
From 2400 to 4800 ± 5mm, typically in 300mm increments |
| Squareness |
Cut ends ± 3mm in the width of the board |
Physical Properties
| Nominal Board Weight*
|
10.5kg/m2
|
| Thermal Resistance |
0.05 – 0.07 m2K/W |
| Fire Hazard Properties∆ |
Group No = 1
SMOGRARC <100 m2/s2
|
| Combustibility◊ |
Plasterboard may be used wherever a non-combustible material is required. |
Total Recycled Content°
|
10.4% |
* Subject to reasonable manufacturing variance
∆ In accordance with AS ISO 9705 and AS 5637.1
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).
°This plasterboard may require extra processing when recycling due to the presence of glass fibre mesh material.
