- Sku: CSR65FLX1236
CSR Gyprock 6.5mm Flexible Plasterboard RE
Product Description
Designed to impress, Gyprock Flexible 6.5mm plasterboard enables specifiers, designers and installers to easily create curved walls and ceilings and add visual interest to a space.
Product Overview

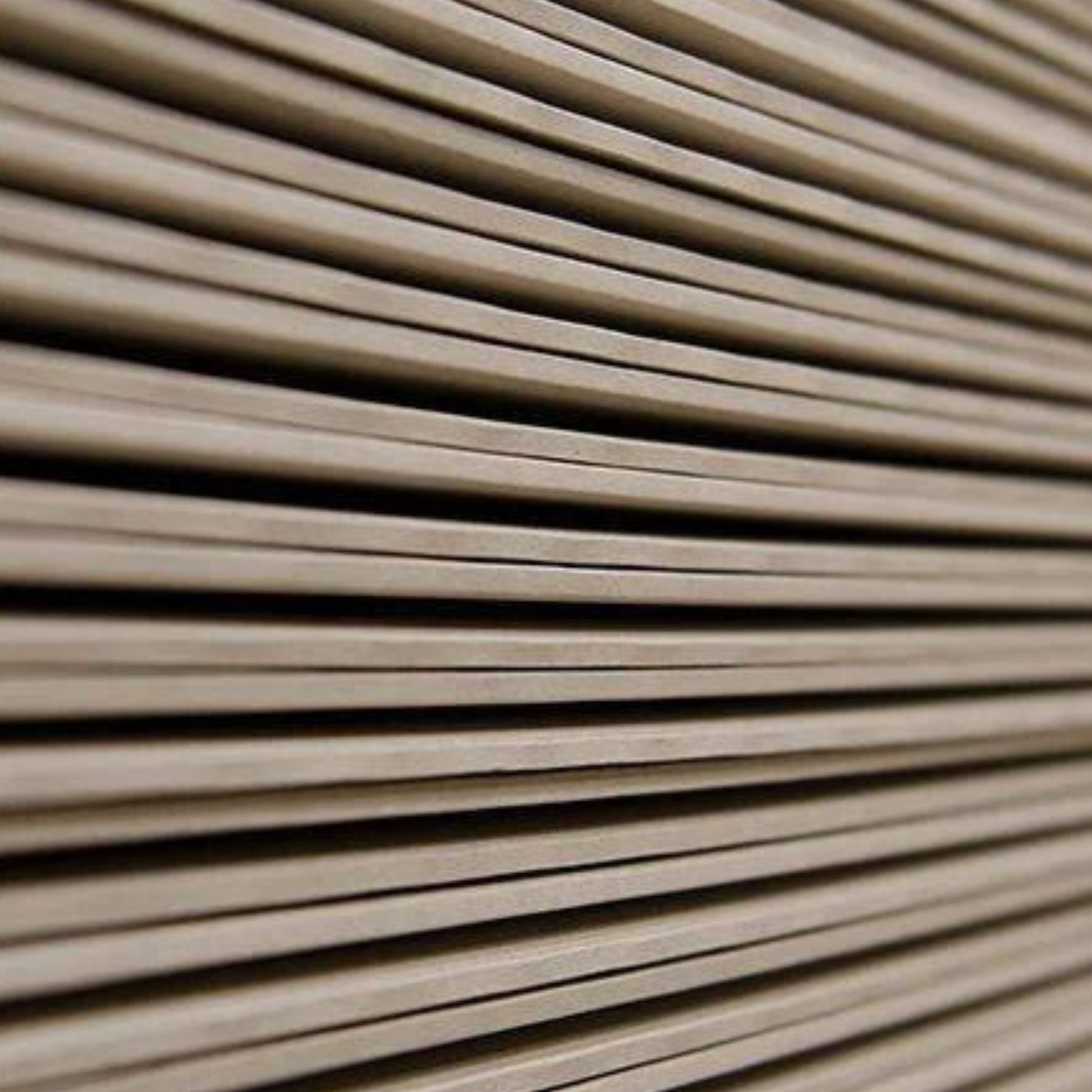

Gyprock Flexible is a 6.5mm thick plasterboard sheet with an enhanced gypsum core, designed to bend for small radius curves.
From concept to creation, designers and installers can create convex curves with a 250mm radius and concave curves with a 450mm radius.
Typical Applications

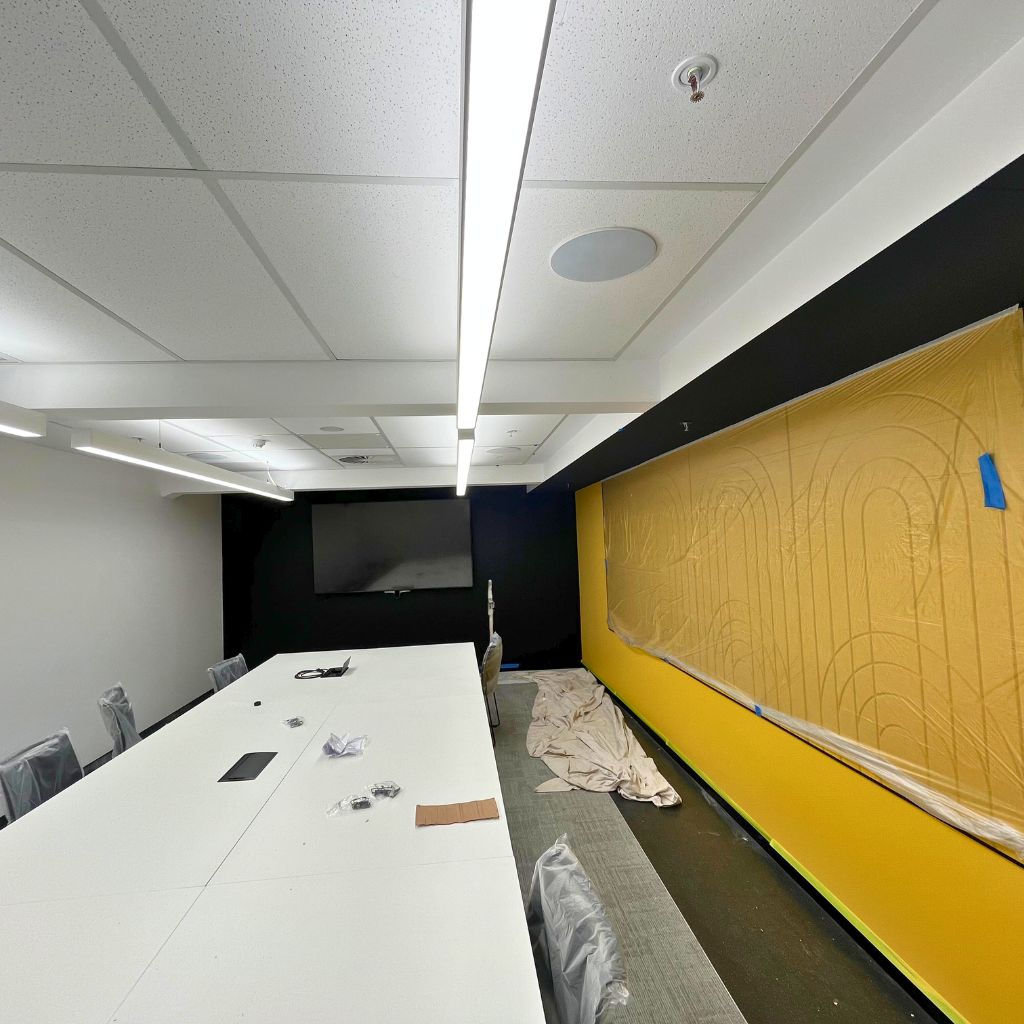

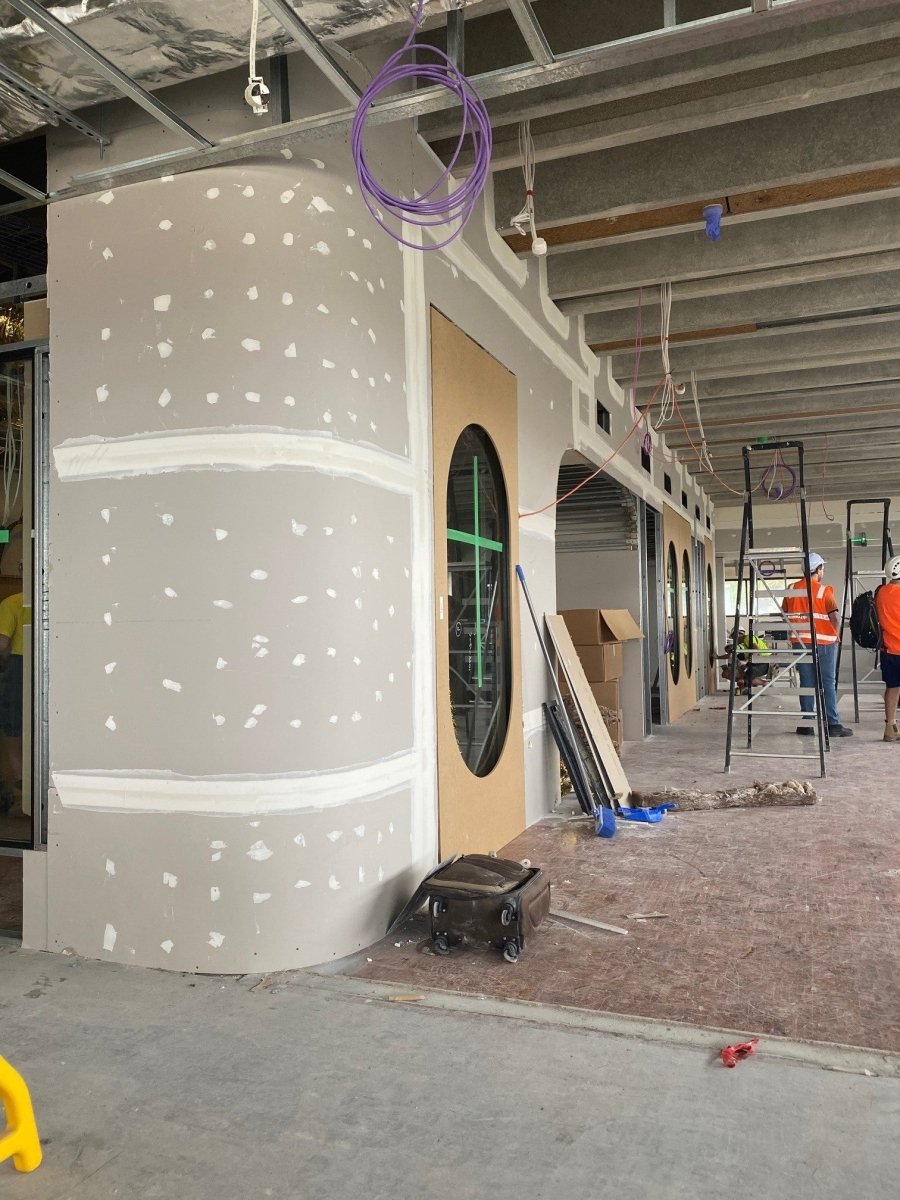

Gyprock Flexible is typically used to create curved feature walls and ceilings, and for the creative encasement of columns.
This plasterboard is installed in two layers for increased strength.
Product Options
Gyprock Flexible is available in the following sizes:
| Thickness | 6.5mm |
| Widths | 1200mm |
| Lengths | 3600mm |
| Edge Profiles | Recessed Edge for regular jointing, Recessed Edge/Square Edge for low profile architectural mouldings |
Manufacturing Tolerances
| Nominal Thickness | 6.5mm ± 0.5mm |
| Nominal Widths | 1200 ± 3mm |
| Nominal Lengths | 3600mm ± 5mm |
| Squareness | Cut ends ± 3mm in the width of the board |
Physical Properties
| Nominal Board Weight* | 4.3kg/m2 |
| Thermal Resistance | 0.03 m2K/W |
| Fire Hazard Properties∆ | Group No = 1 SMOGRARC <100 m2/s2 |
| Combustibility◊ | Plasterboard may be used wherever a non-combustible material is required. |
| Total Recycled Content |
10.2% |
* Subject to reasonable manufacturing variance
∆ In accordance with AS ISO 9705 and AS 5637.1
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).
Where does Wall Ceiling deliver to?
Wall Ceiling is delighted to offer plasterboard delivery to metro Sydney.
For regional areas, please email us at info@wallceiling.com.au with the items and quantities you need from our website, and we will promptly provide a manual quote.
How much do you charge for delivery?
Customer will receive an accurate delivery charge during checkout.
How long does it take to deliver the order and how much it will cost?
Delivery time frame varies by location:
| Location | Delivery Time Frame | Delivery Cost |
| Sydney | 1 - 2 business days | Starts from $45 |
Some products may have a longer lead time which we will inform you as early as possible.
Who is responsible for unloading the materials off the truck?
Our delivery driver will assist you to unloading the materials next to the truck. However, it is the customer's responsibility to move the materials beyond that point.
Do you offer crane truck delivery?
No, we found hand unload or forklift on site is the most effectively way to unload plasterboard products.
What time will truck arrive during the delivery day?
It's difficult to predict precise delivery time due to factors such as traffic and weather conditions.
To facilitate a smooth delivery process:
- Our office will schedule and confirm delivery date with you after receiving your order.
- On the day of delivery, our driver will contact you before dispatching from warehouse to ensure you are prepared.
Do I need to be on-site to receive my delivery?
Yes, if you are not available, please kindly arrange another person to accept and help with unloading on your behalf.
Have a question?
Choosing the Right Plasterboard for Your Project
When it comes to interior construction in Australia, plasterboard is a foundational element that cannot be overlooked. Also known as drywall or gypsum board, plasterboard plays a crucial role in creating the walls and ceilings of our homes, offices, and commercial spaces. It's the canvas upon which aesthetics, insulation, fire resistance, and acoustic performance are all crafted.
Whether you're planning a home renovation, a commercial build, or any interior project, making the right plasterboard choice is paramount. In this blog, we'll embark on a journey through the world of plasterboard selections in Australia. From the basics of standard plasterboard to the specialized options catering to unique project needs, we'll provide you with the knowledge you need to make informed decisions. So, let's dive in and explore the plasterboard landscape in Australia, ensuring that your next project is built on a solid foundation.
Standard Plasterboard
Let's start with the most common type of plasterboard used in Australia: standard plasterboard. Comprising a gypsum core encased in paper liners, it's available in various thicknesses, typically ranging from 10mm to 13mm. Standard plasterboard is your go-to option for most interior wall and ceiling applications. It's cost-effective, readily available, and serves as the workhorse of the construction industry. We stock full range of Gyprock Standard 10mm Plasterboard and Standard 13mm Plasterboard.
Moisture-Resistant Plasterboard
In spaces prone to moisture, such as bathrooms, kitchens, and laundries, standard plasterboard might not be suitable. That's where moisture-resistant plasterboard, often referred to as green board, comes into play. This variant features a core designed to resist water damage and special paper liners that discourage mold and mildew growth. For long-lasting performance, it's essential to pair moisture-resistant plasterboard with compatible jointing compounds and tape. Check out Gyprock 10mm Aquachek and 13mm Aquachek for more product details.
Fire-Resistant Plasterboard
In many commercial and multi-residential buildings, fire safety regulations demand the use of fire-resistant plasterboard. These boards come with various fire ratings, such as 30-minute (FRL30), 60-minute (FRL60), and 90-minute (FRL90), indicating their ability to withstand fire. Installing fire-resistant plasterboard helps contain fires, providing precious time for evacuation and minimizing property damage. CSR Redbook is good source to check for various tested system to suit your fire rating requirements. CSR Gyprock 13mm and 16mm Fyrchek is an ideal choice for fire rating wall and ceiling construction.
Sound Resistant Plasterboard
If your project requires noise control, soundproof plasterboard should be on your radar. Designed to reduce sound transmission between rooms, it's perfect for spaces like home theaters, bedrooms, and offices. Sound resistant plasterboard usually boasts a denser core and may incorporate additional acoustic insulation materials for superior noise reduction. Gyprock Soundchek along with acoustic insulation would be an ideal solution to suit the acoustic design.
Impact Resistant Plasterboard
In high-traffic areas like schools, hospitals, and commercial spaces, impact-resistant plasterboard shines. This type of board features a reinforced core that enhances its durability and resistance to damage from impacts. It's a go-to choice for corridors, classrooms, and areas where accidental damage is more likely to occur.
Specialty Plasterboard
Australia offers a range of specialty plasterboard products to cater to unique project requirements. Some noteworthy examples include:
- Curved Plasterboard: Gyprock 6.5mm Flexiboard Ideal for creating arched or curved walls, adding architectural flair to your project. With an enhanced gypsum core in a heavy duty liner paper that enables the board to bend to a 450mm radius concave or 250mm radius convex curve. It is specifically designed to create curved walls and ceilings and for cladding large pillars in residential and commercial applications. It is installed in two layers for increased strength and the long edges of the panels are recessed for flush jointing to a smooth, continuous surface.
- Perforated Plasterboard: Perfect for acoustic paneling, improving sound quality in a room. Gyprock perforated plasterboard range include Standard 6mm round perforated plasterboard, 13mm Gyptone range and 13mm Rigitone range.
- Shaft Liner: Gyprock Shaft Liner MP 25mm provides enhanced protection against mould growth for extra peace of mind during the early stages of construction. Shaft Liner MP, like standard Shaft Liner panel has a fibre-reinforced core encased in a heavy duty linerboard. This enables it to resist fire and make it ideal for use as a part of a fire rated wall or ceiling system. These panels also offer exceptional acoustic insulation properties and are used in Gyprock commercial wall and ceiling systems which are a high fire rating or high acoustic performance is specified. New Shaft Liner MP panel is manufactured with a powerful but gentle anti-fungal agent that permeates the plasterboard core, as well as the face and back paper of the board, providing enhanced protection against the possibility of mould growth during the early stages of construction.
Selecting the Right Plasterboard
Choosing the right plasterboard for your Australian construction or renovation project boils down to several key factors:
-
Project Type: Determine whether your project is residential, commercial, or industrial. Understanding relative building codes in Australia. This will influence your plasterboard selections.
-
Location: Consider the environmental conditions of the area where the plasterboard will be installed. Take into account moisture levels, fire safety regulations, and the need for soundproofing or impact resistance.
- Budget: Stay within your project budget while selecting plasterboard that meets your needs without compromising on quality.
-
Performance: Choose plasterboard with the necessary features to meet your project's specific needs, whether it's fire resistance, soundproofing, or impact resistance.
-
Installation: Ensure that you use proper installation methods and compatible jointing compounds and tapes to maintain the plasterboard's performance.
Plasterboard Supplier Sydney
Wall Ceiling is a local plasterboard supplier based in Sydney. We stock full range of plasterboards, as well as other plastering products including insulation and wall & ceiling framing building materials. Please place an order or simply Contact Us for more details.
